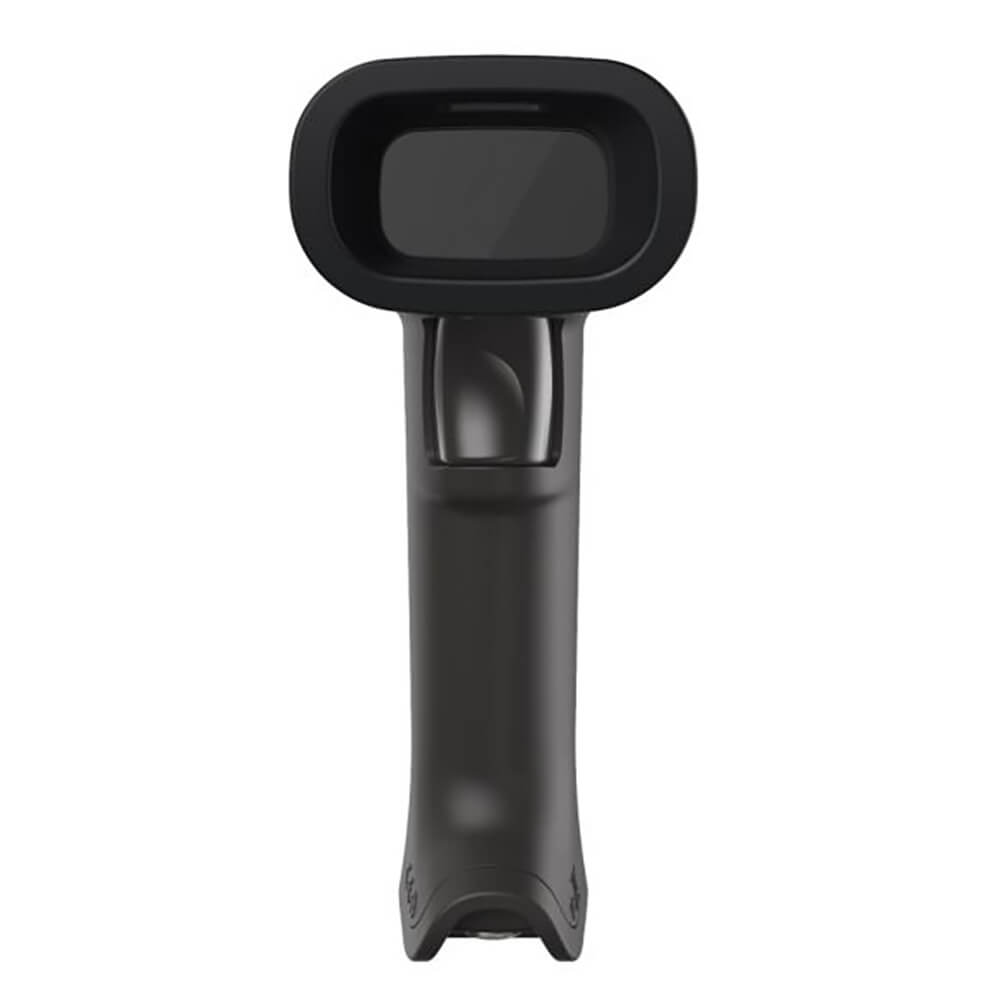

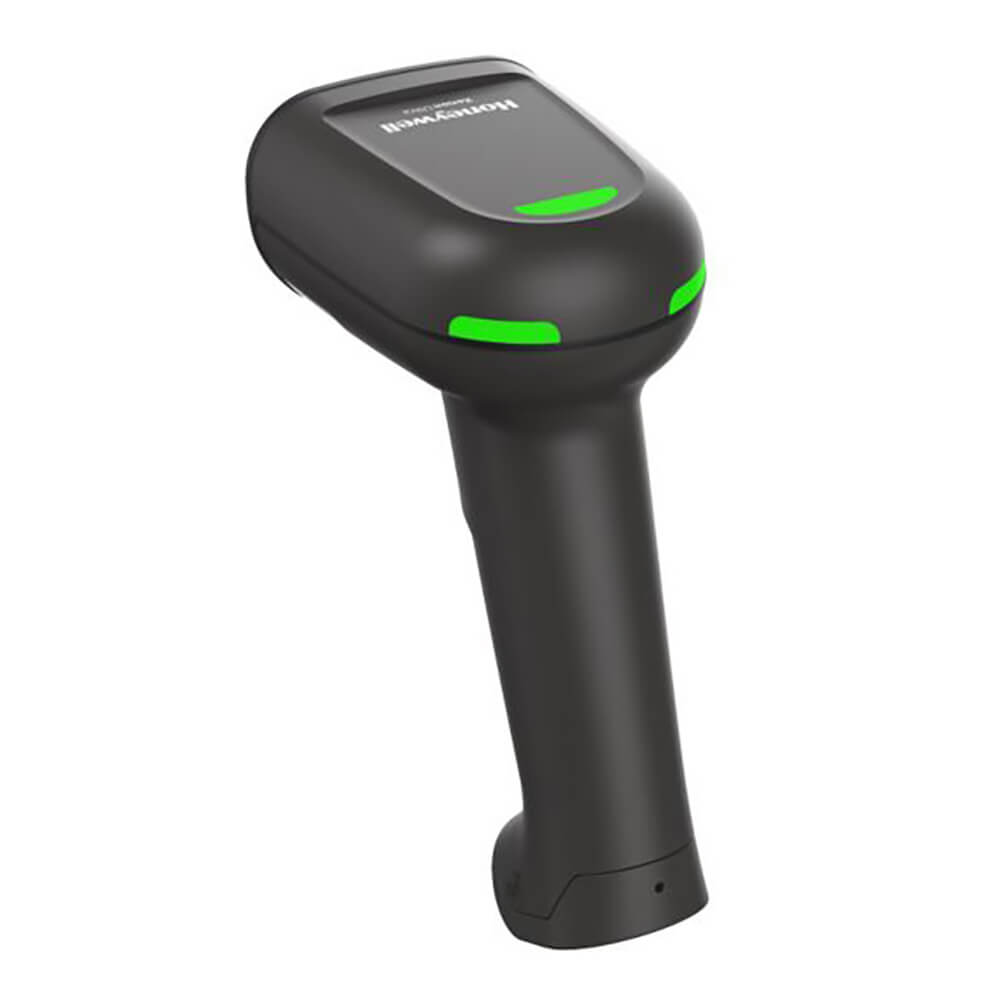

Honeywell Xenon Ultra 1960g Corded 2D Handheld Barcode Scanner

The Honeywell Xenon Ultra 1960g is a high-performance corded 2D area-imaging handheld barcode scanner designed for demanding retail checkout, healthcare, warehousing, and light manufacturing environments. Engineered as the next-generation successor to the industry-standard Xenon XP 1950g, the 1960g features an upgraded scan engine with an intuitive green-dot aimer, fast motion tolerance, and seamless backward compatibility with existing Xenon cables and power supplies.

Key Features & Advantages

• Upgraded Scanning Architecture: Combines an advanced area-imaging sensor with a high-visibility green-dot LED aimer to enhance targeting precision and deliver instant, reliable reads on poor-quality or damaged barcodes.
• Backward Cable Compatibility: Fully compatible with existing Xenon XP 1950g cables and accessories, allowing businesses to upgrade their scanner fleet without replacing installed cabling infrastructure.
• Extended Range / High Density Options: Flexible optical configurations (SR / HD) empower retailers to capture both tiny jewelry tags and standard shipping labels efficiently with a single device family.
• Enterprise Device Management: Compatible with Honeywell Scanner Management Utility (SMU), Operational Intelligence, and EZConfig for automated fleet-wide deployment and firmware updates.

Technical Specifications

• Scan Technology: Area Image (1280 x 1080 pixel array) with bright green-dot LED aimer
• Optics Options:
  • Standard Range (1960GSR): Optimized for general-purpose retail point-of-sale and commercial logistics
  • High Density (1960GHD): Optimized for high-density, tiny electronic components and pharmaceutical barcodes
• Motion Tolerance: Up to 400 cm/s (157 in/s) for 13 mil UPC at optimal focal point
• Decoding Capabilities:
  • 1D Barcodes: Code 39, Code 128, UPC/EAN, GS1 DataBar, Interleaved 2 of 5, etc.
  • 2D Barcodes: QR Code, Micro QR, Data Matrix, PDF417, Aztec, Maxicode
  • Specialty Codes: Digimarc, DotCode, OCR, and digital screen barcodes
• Host System Interfaces: USB, Keyboard Wedge, RS-232, and IBM 46xx (RS485)
• Input Voltage: 4.4V DC to 5.5V DC (Corded USB / Host powered)
• Dimensions & Weight: 108 mm x 70 mm x 160 mm (4.3 in x 2.8 in x 6.3 in), approx. 147.2 g (5.2 oz)

Durability & Environmental Standards

• Drop Resistance: Engineered to withstand 50 drops from 1.8 m (6 ft) to concrete and 2,000 0.5 m (1.6 ft) tumbles
• Environmental Sealing: IP52 rated protection against airborne dust and dripping liquids
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• ESD Protection: ±8 kV contact discharge, ±15 kV air discharge
• Applications: Retail point-of-sale (POS), pharmacy & specimen tracking, parcel shipping & receiving, and light electronic manufacturing
