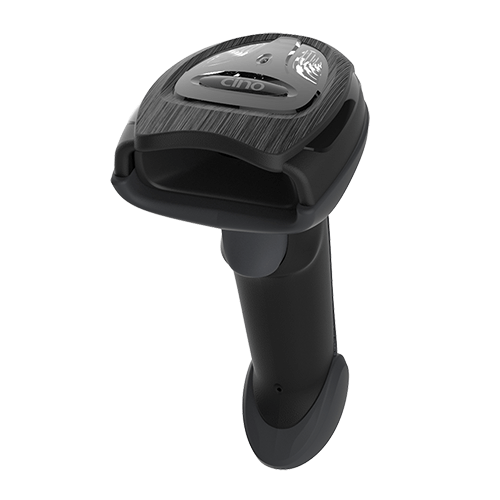

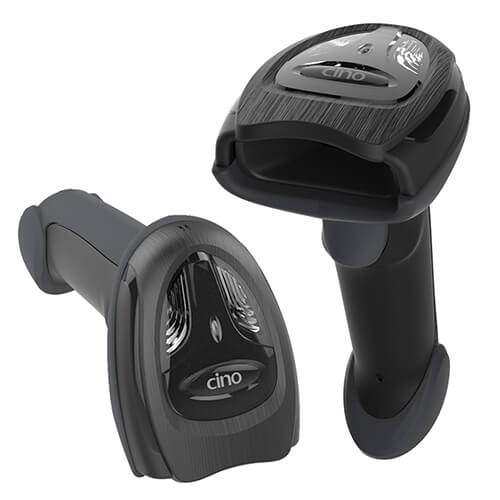

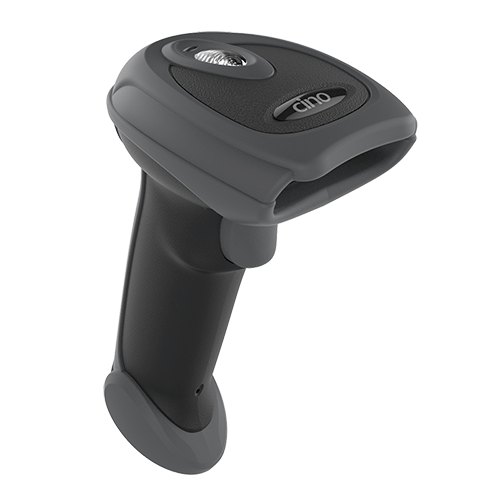

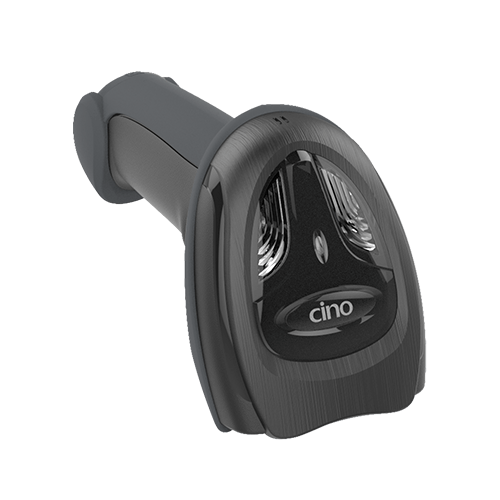

CINO FuzzyScan A780-HD / A780-SR 2D Corded Handheld Imager
CINO FuzzyScan A780-HD / A780-SR 2D Corded Handheld Imager
Não foi possível carregar a disponibilidade de recolha
The Cino FuzzyScan A780 is a rugged, corded 2D handheld barcode imager engineered for high-throughput enterprise retail checkout, manufacturing tracking, warehousing, and distribution centers. Built on Cino's advanced FuzzyScan 3.0 imaging platform with a high-resolution 1280 × 800 pixel area sensor, the A780 delivers snappy, omnidirectional reading across all mainstream 1D and 2D barcodes—reliably capturing low-contrast, soiled, poorly printed, or reflective smartphone screen codes.
Designed for demanding industrial use, the A780 features an over-molded, shock-absorbing housing that survives repeated 2.0-meter (6.6 ft) drops onto concrete and is rated IP52 for dust and moisture resistance. Available in both High Density (HD) and Standard Range (SR) optical models, the A780 easily resolves ultra-compact high-density codes down to 2.4 mil Code 39 and 4.5 mil DataMatrix. With motion tolerance up to 6.17 m/s (243 in/s), versatile host connectivity, and programmable visual, audible, and optional tactile vibration feedback, the A780 streamlines mission-critical data collection.
Key Features & Functional Highlights
- Exclusive FuzzyScan 3.0 Imaging Platform: High-resolution 1280 × 800 CMOS sensor and advanced decoding algorithms provide lightning-fast, omnidirectional capture of 1D, 2D, and stacked barcodes.
-
Dual Optical Focus Models (SR & HD):
- Standard Range (SR): Ideal for retail POS, logistics sorting, and light warehousing with balanced scanning depth.
- High Density (HD): Engineered for electronics manufacturing, PCB assembly, and healthcare specimen tracking, reading micro-barcodes down to 2.4 mil Code 39 and 4.5 mil DataMatrix.
- High-Speed Motion Tolerance: Exceptional motion tolerance of up to 6.17 m/s (243 in/s) ensures rapid, point-and-shoot scanning without hesitation.
- Aggressive Reading on Problematic Barcodes: Reads low-contrast symbols down to 18% MRD, distorted, curved, soiled, or high-reflective smartphone screen barcodes with ease.
- Rugged Industrial Durability: Withstands repeated 2.0-meter drops to concrete, carries IP52 environmental sealing, and operates reliably across temperatures from -10°C to 50°C.
- Multi-Sensory Feedback: Features 3 distinct LEDs (Power, Good Read, Status), a programmable high-volume beeper, and an optional vibrator for noisy industrial environments.
- Hands-Free Presentation Scanning: Supports auto-sensing presentation scanning when seated in optional US100 SmartStand or US50 Hands-Free Stand.
- DataWizard Premium On-Board Data Processing: Perform custom data manipulation, parsing, validation, and security encryption directly inside the scanner prior to host transmission.
- Universal Host Interface Support: Supports USB (HID Keyboard, USB Virtual COM port emulation) and RS232 Serial connections with universal multi-interface cable design.
Technical Specifications
| Specification | Details & Parameters |
|---|---|
| Image Sensor | 1280 × 800 Pixels CMOS area sensor |
| Light Source | 660 nm visible red LED illumination |
| Field of View | 41.5° Horizontal × 25.9° Vertical |
| Minimum Print Contrast | 18% minimum reflectance difference (MRD) |
| Optical Focus & Resolution |
HD Model: 2.4 mil Code 39, 4.5 mil DataMatrix SR Model: 2.7 mil Code 39, 4.8 mil DataMatrix |
| Reading Range (13 mil UPC/EAN) | HD Model: up to 14.1 in (35.8 cm) | SR Model: up to 19.6 in (49.8 cm) |
| Motion Tolerance | Up to 6.17 m/s (243 in/s) |
| Skew / Pitch / Roll Tolerance | Skew: ±65° | Pitch: ±75° | Roll: 360° omnidirectional |
| Host Interfaces | USB (USB HID Keyboard, USB VCOM port emulation) | RS232 Serial (DB9 female) |
| User Feedback & Controls | 3 LEDs (Power, Good Read, Status), programmable loud beeper, optional vibration motor |
| Configuration Setup | FuzzyScan Barcode commands, iCode programming, FuzzyScan PowerTool |
| Input Voltage & Current | 5 VDC ± 10%; Operating: Typical 395 mA @ 5VDC; Standby: Typical 220 mA @ 5VDC |
| Dimensions (L × W × H) | 93.5 mm × 71.0 mm × 160.0 mm [3.68 in × 2.79 in × 6.29 in] |
| Weight | 150 g [5.29 oz] (cable excluded) |
| Environmental Sealing | IP52 industrial dust and moisture protection |
| Drop & ESD Protection | Withstands repeated 2.0 m [6.6 ft] drops to concrete; Functional after 15 kV air discharge |
| Operating & Storage Temp | Operating: -10°C to 50°C [14°F to 122°F]; Storage: -40°C to 70°C [-40°F to 158°F] |
| Regulatory & Safety | CE, FCC, BSMI, RCM, KC, VCCI, LED Eye Safety IEC 62471 Exempt Group, RoHS compliant |
Supported Symbologies
- 1D Linear Barcodes: Code 39, Code 39 Full ASCII, Code 32, Code 128, GS1-128, Codabar, Code 11, Code 93, GS1 DataBar, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum, Telepen, MSI/Plessey, UK/Plessey.
- 2D Matrix Symbologies: QR Code, Micro QR Code, Data Matrix, MaxiCode, Aztec Code, PDF417, Micro PDF417, Codablock F, Code 16K, Code 49, Composite codes.
- Postal Codes: Australian Post, US Planet, US Postnet, Japan Post, Posi LAPA 4 State Code.
