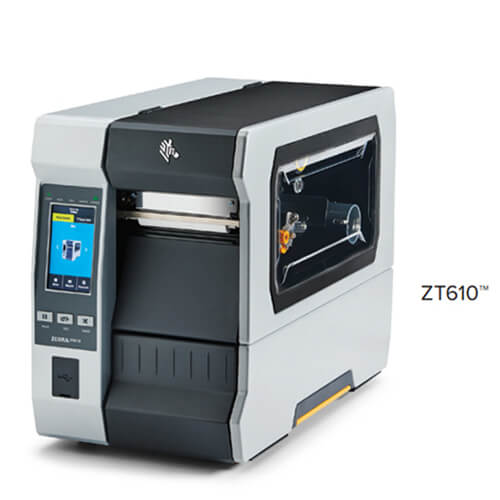

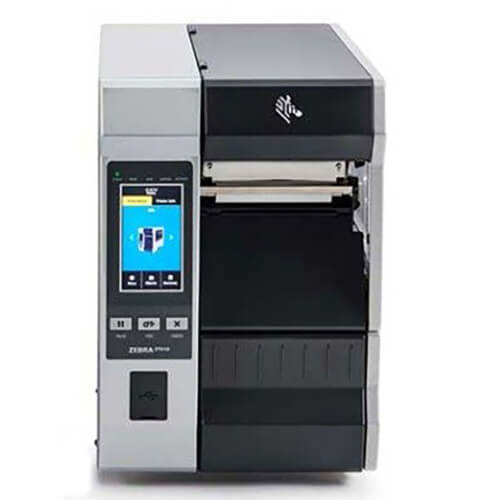

Zebra ZT610 4-Inch Heavy-Duty Industrial Barcode Printer (203/300/600 DPI, Color Touchscreen)

Zebra ZT610 4-Inch Heavy-Duty Industrial Barcode Printer (203/300/600 DPI, Color Touchscreen)

$1,834.00 USD
$2,070.71 USD $1,834.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Options

Engineered to succeed the legendary Xi Series, the Zebra ZT610 4-Inch Heavy-Duty Industrial Thermal Barcode Printer combines rugged industrial steel durability and 24/7 continuous duty cycles with next-generation intelligence, micro-precision label registration, and comprehensive Print DNA management.

Operating across 203 DPI (up to 14 ips), 300 DPI (up to 12 ips), and ultra-high-resolution 600 DPI (up to 6 ips), the ZT610 features micro-consistent print registration with fine-tune adjustments down to 3 mm (0.125 in) labels for high-density electronic circuit boards (PCBs), laboratory ampoules, and semiconductor manufacturing. Designed with an all-metal structural frame, built-in thermal management vents, and an intuitive 4.3-inch full-color resistive touchscreen (or backlit graphical LCD) with animated status alerts, the ZT610 delivers unmatched operational reliability across the most punishing manufacturing environments.

Key Features & Commercial Advantages

  • Extreme 24/7 Industrial Reliability: Heavy-gauge all-metal structural components withstand harsh dust, extreme heat, moisture, and continuous mechanical vibration.

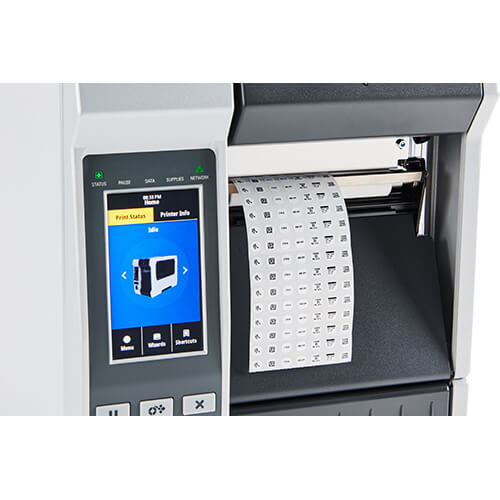

  • Micro-Consistent Label Registration: Exceptional side-loading registration accuracy prints crisp micro-barcodes and 2D Data Matrix codes on tiny 3 mm labels without drifting.
  • Three Resolution Capabilities (203, 300 & 600 DPI):
    • 203 DPI: Lightning-fast production line printing up to 14 inches per second (356 mm/s).
    • 300 DPI: Superior graphic clarity and shipping barcode throughput up to 12 inches per second (305 mm/s).
    • 600 DPI: Ultra-precise microscopic text and intricate electronics marking up to 6 inches per second (152 mm/s).
  • Color Touch User Display: Intuitive color interface displays dynamic QR diagnostic codes and step-by-step visual calibration guides.
  • Advanced Thermal Management: Eliminates internal cooling fans to prevent dust ingress, extending component life and reducing maintenance costs.
  • Extensive Multi-Interface Connectivity: Standard USB 2.0, RS-232 Serial, Gigabit Ethernet, Bluetooth 4.0, and dual USB Host ports, with optional 802.11ac Wi-Fi.
  • Link-OS & Zebra Print DNA: Enterprise-grade printer management, remote firmware deployment, and cloud security protocols.

Target Industries & Applications

  • Electronics & High-Tech Manufacturing: Micro PCB component tracking, semiconductor wafer labeling, serial rating plates.
  • Automotive & Heavy Industry: Sub-assembly parts verification, engine block serialization, compliance tier-1 labeling.
  • Pharmaceutical & Medical: Vials, ampoules, laboratory specimen tracking, FDA UDI compliance marking.
  • High-Speed Logistics: Continuous 24/7 cross-dock sorting, distribution center picking and pallet dispatch.

Technical Specifications

Parameter Specification Detail
Model Series Zebra ZT610 4-Inch Industrial Thermal Transfer & Direct Thermal Printer
Print Methods Thermal Transfer & Direct Thermal
Maximum Print Width 4.09 in / 104 mm
Print Resolution & Max Speed 203 DPI (8 dots/mm): Up to 14 ips (356 mm/s)
300 DPI (12 dots/mm): Up to 12 ips (305 mm/s)
600 DPI (24 dots/mm): Up to 6 ips (152 mm/s)
Label Registration Accuracy ±0.02 in (±0.5 mm); Minimum label length: 0.125 in / 3 mm
User Interface Display 4.3-inch color touch display (or illuminated graphical LCD) with status alerts
Media & Ribbon Capacity Media Width: 0.79 in (20 mm) to 4.5 in (114 mm); Roll O.D.: 8.0 in (203 mm) on a 3 in (76 mm) core; Ribbon Length: 1,476 ft (450 m)
Standard Interfaces USB 2.0, RS-232 Serial, Gigabit Ethernet (10/100/1000), Bluetooth 4.0, Dual USB Host ports
Chassis Construction All-metal heavy-duty steel frame with side-opening metal door and clear window
Dimensions & Weight 395 mm (H) × 268 mm (W) × 505 mm (D) / 15.58 in × 10.56 in × 19.88 in; Weight: 22.7 kg (50 lbs)
