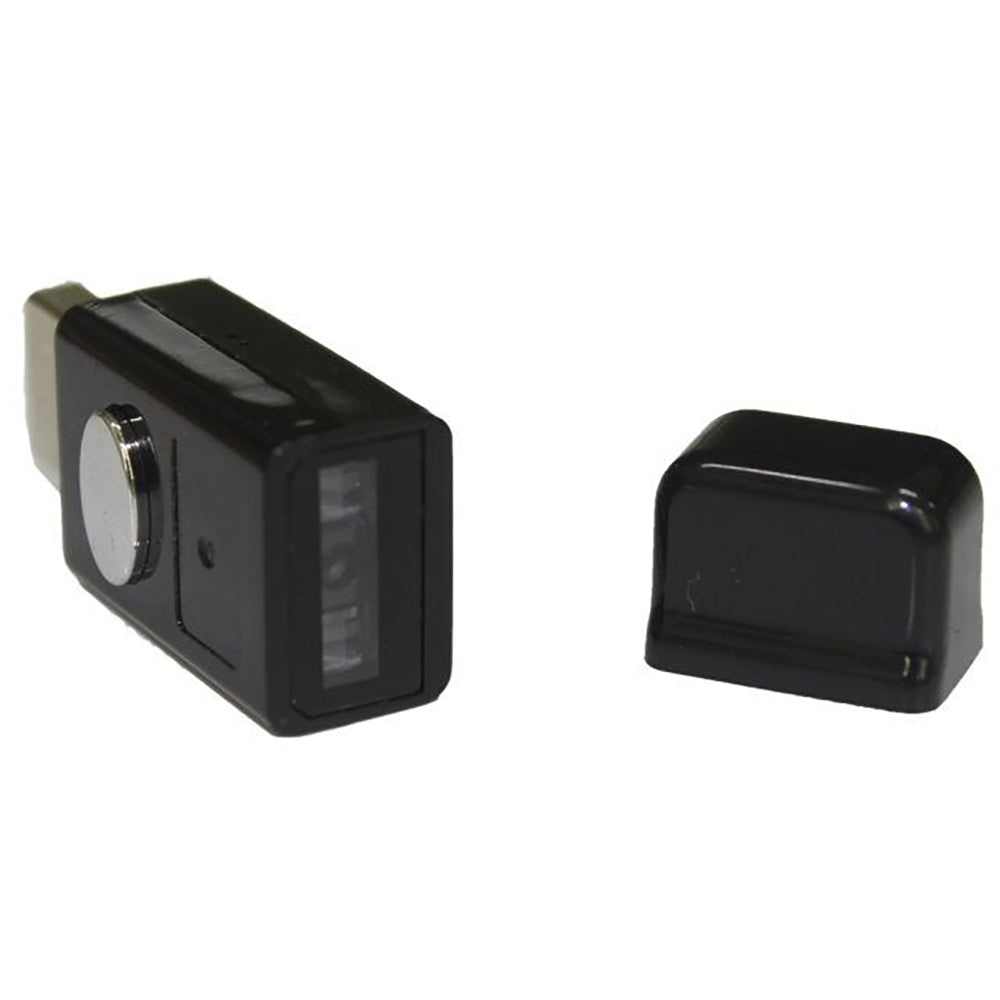

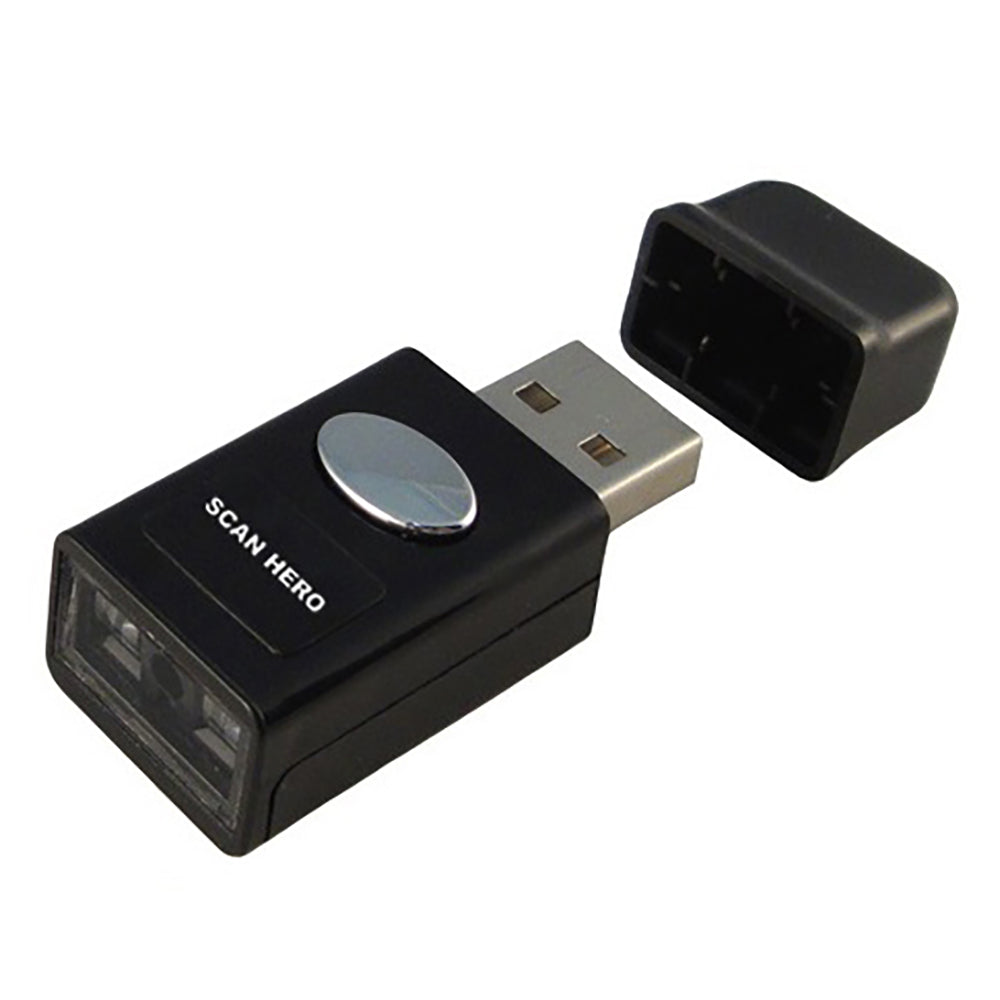

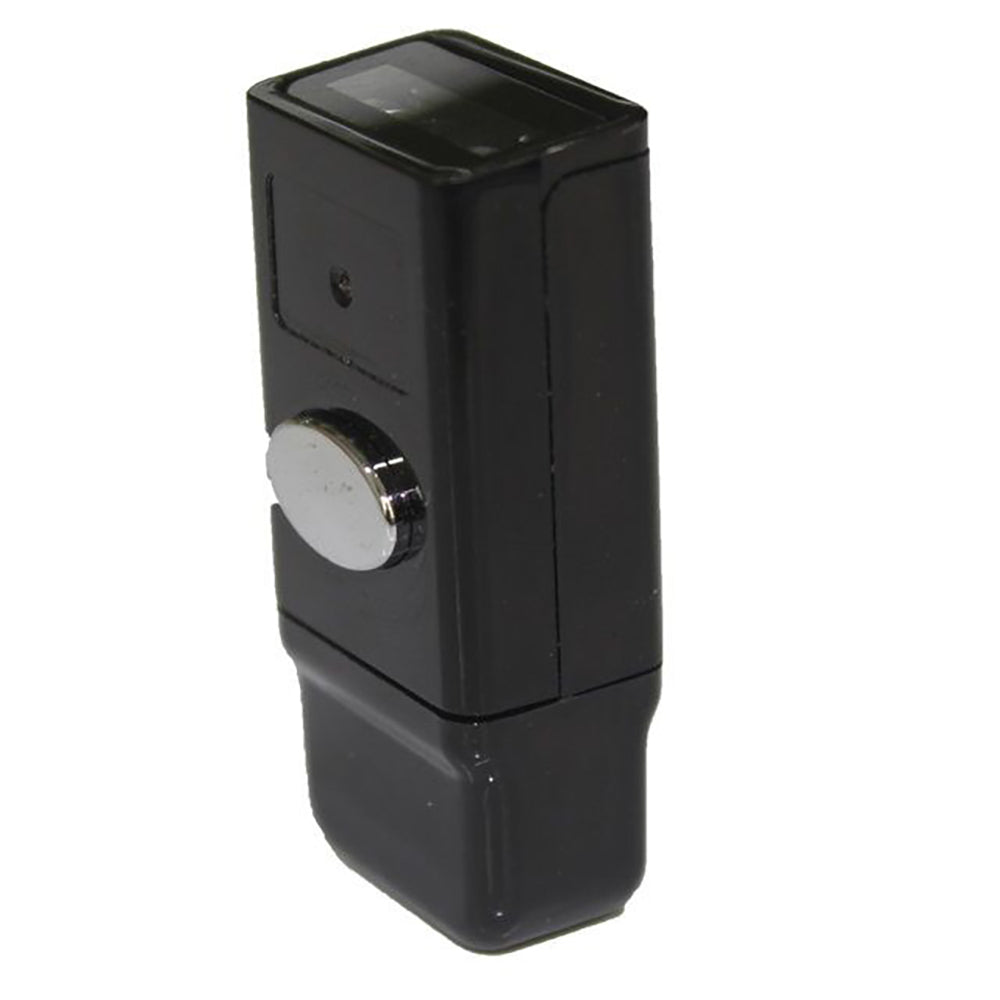

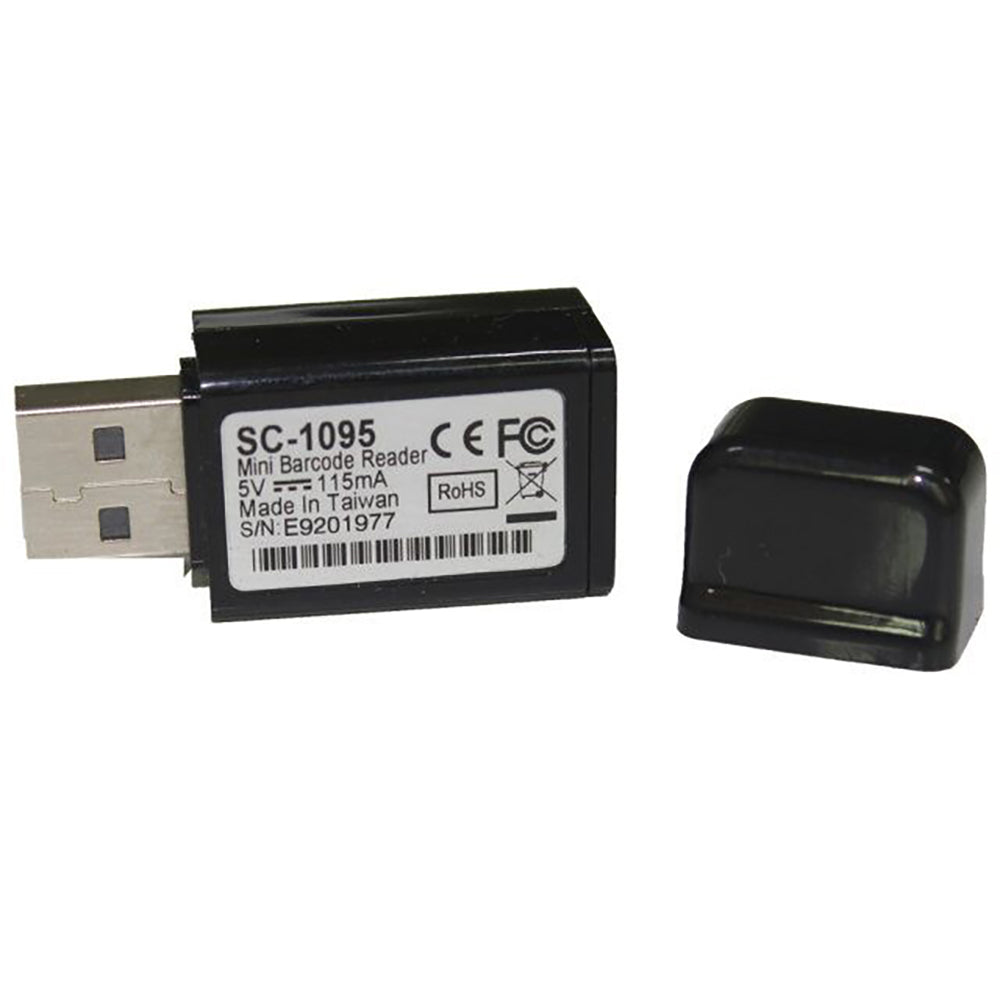

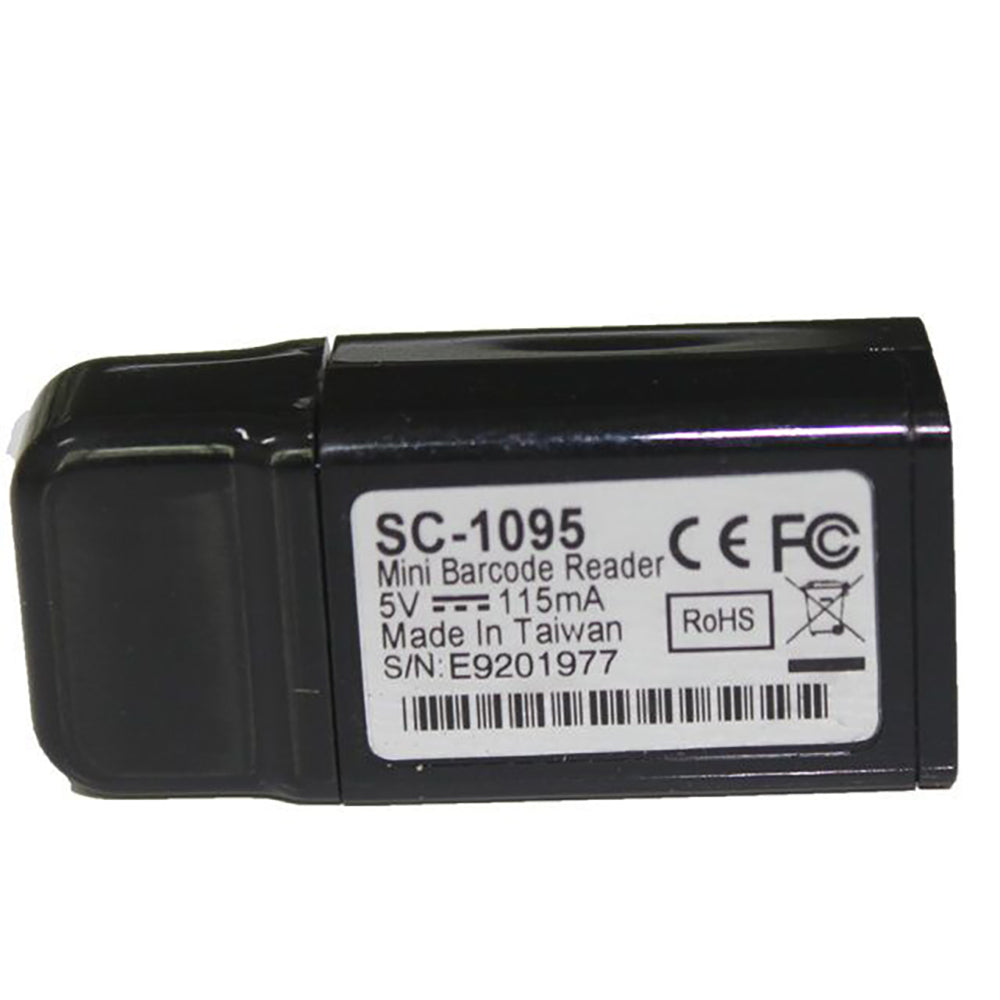

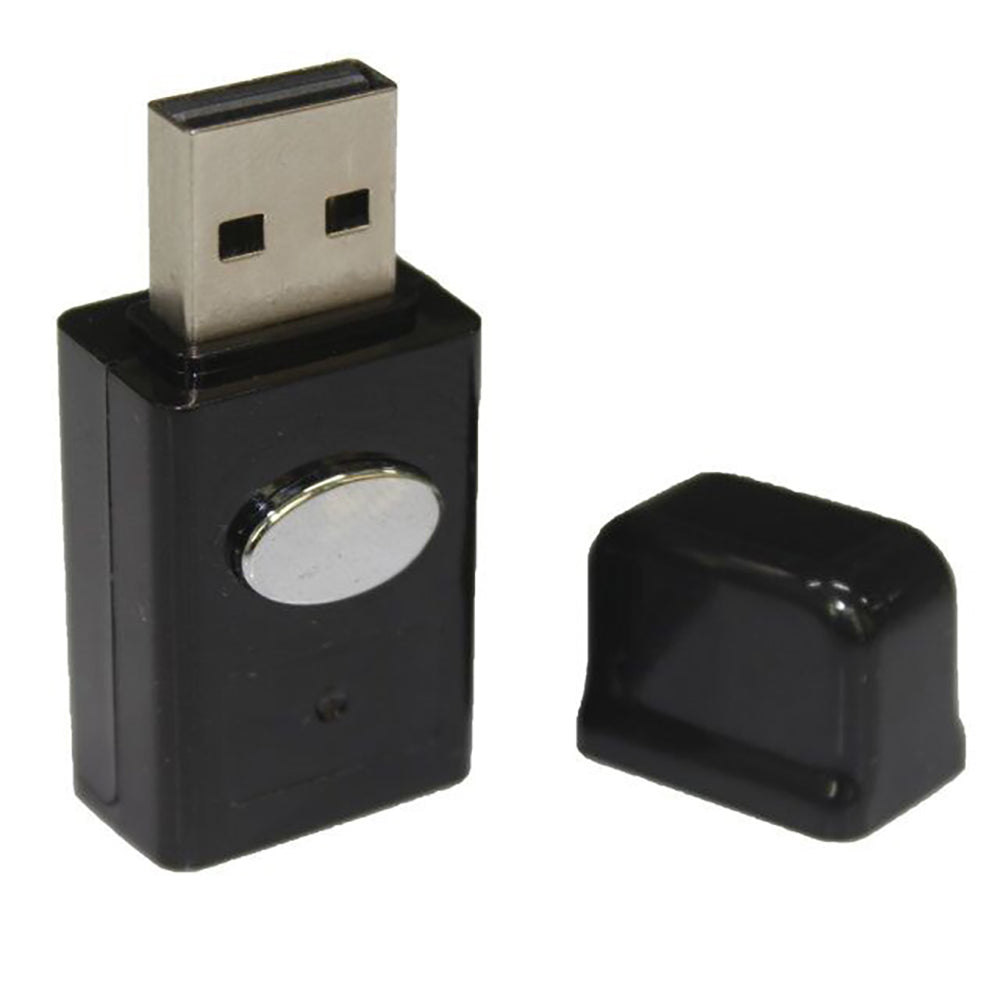

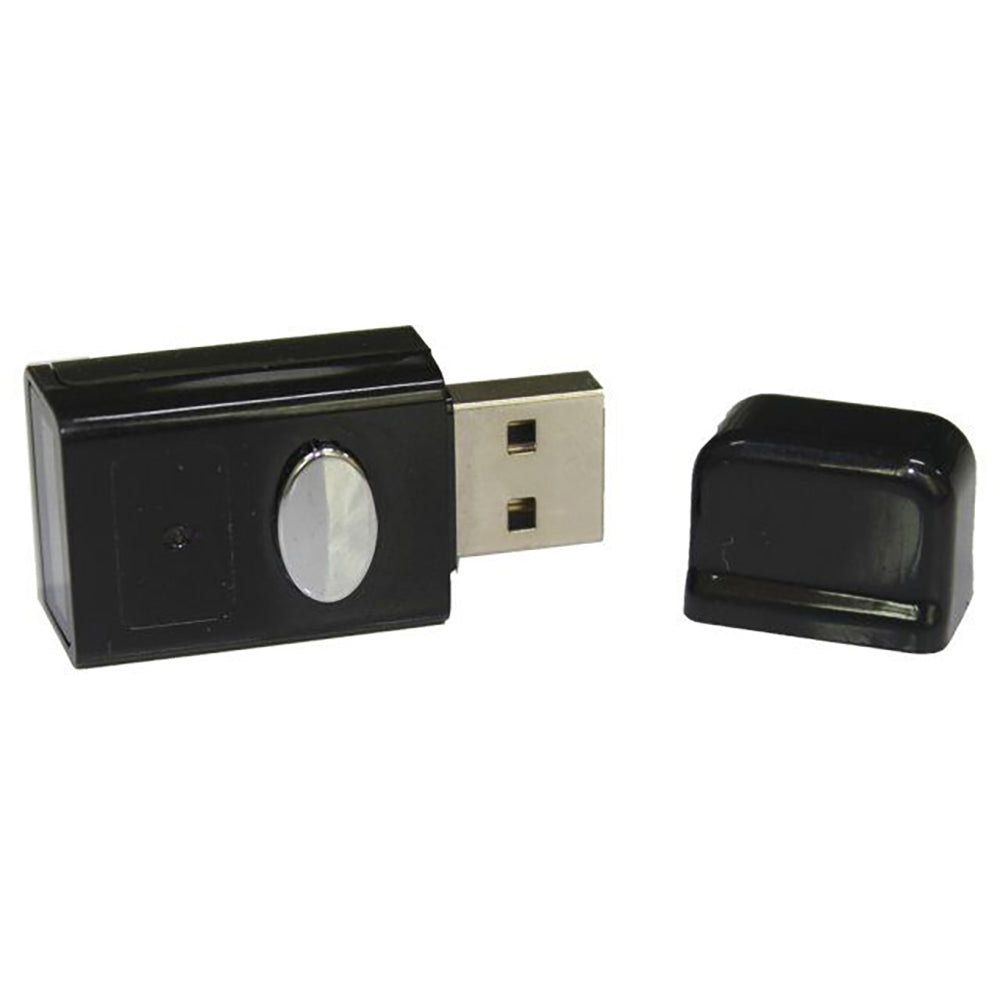

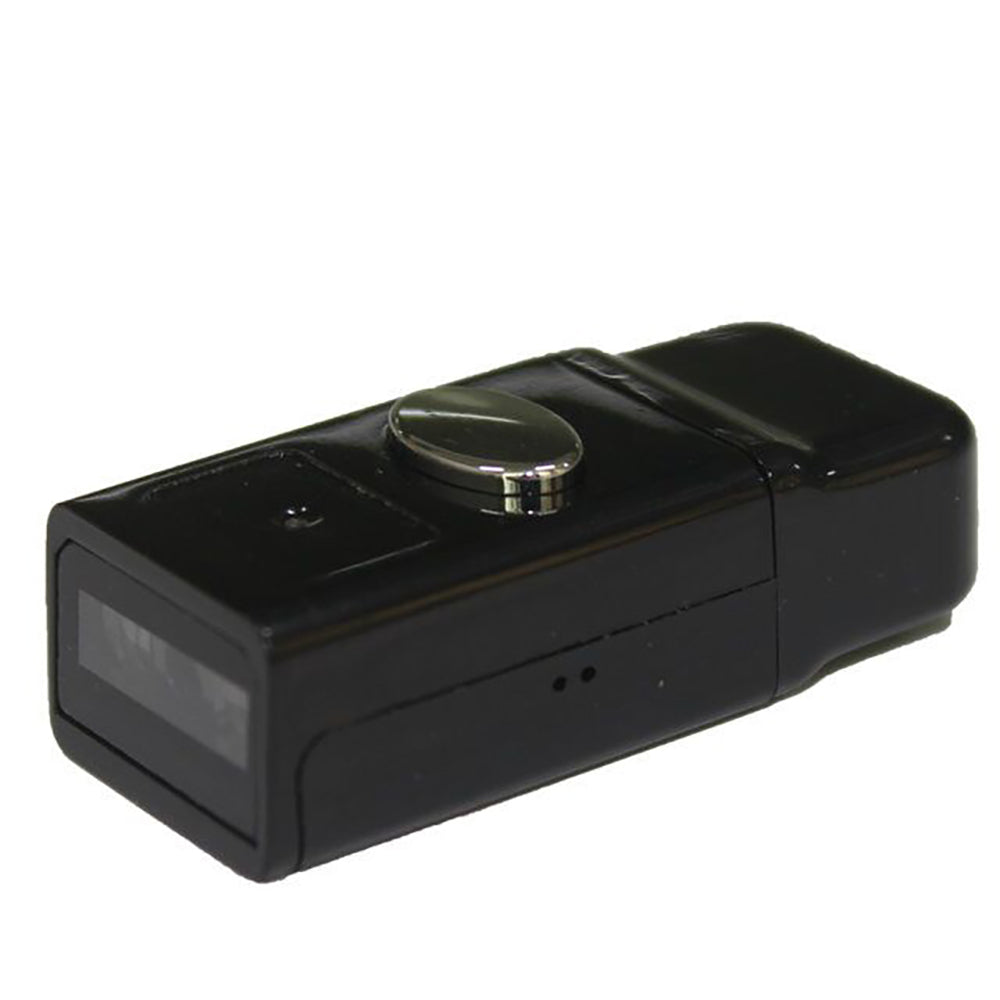

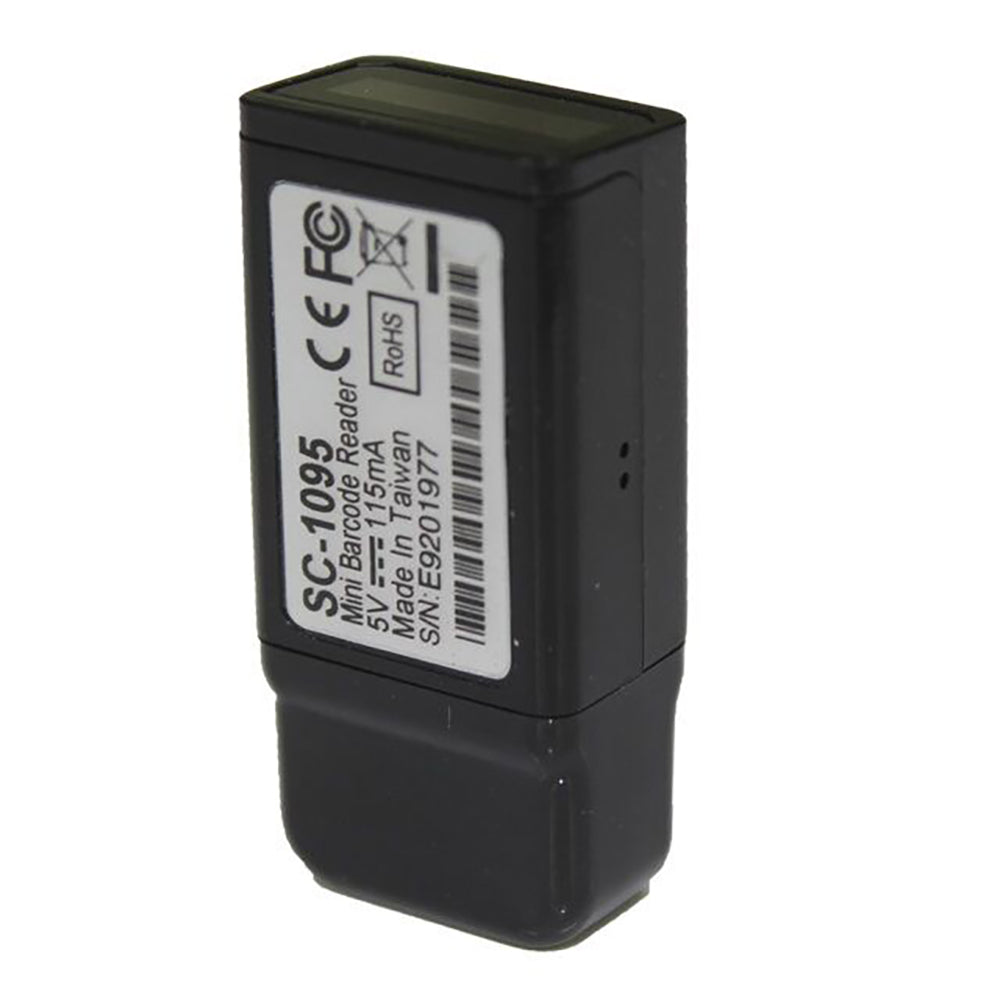

Scan Hero SC-1095 mini USB barcode scanner

Scan Hero SC-1095 mini USB barcode scanner

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

SC-1095 is built to be to the world's smallest, Plug and Read, mini USB barcode scanner, such as flash drives in general, small size easy to carry, flexible operation, meet the needs of mobile applications. With User-friendly interface, USB HID, you can plug and read, without complicated the setup and operation.

SC-1095 is the samllest bracode scanner in the world, designed to be small, compact and easy to be carried. MT1095 Mini barcode scanner is suitable for any kind of mobile application device with USB interface.

When connected with Tablet PC and the cloud,MT1095 becomes a "mobile data collection device". SC-1095 also can be directly mounted on the Mobile Phone as a auxiliary barcode scanning devices, and no driver is needed. MT1095 standby current is less than 100mA, which saves energy, reducing carbon emissions.



  • The World's Smallest Barcode Scanner
    • USB Communication Interface
    • For portable device, such as tablet PC or smart phone
    • Support all major 1D barcodes
    • Patent has been filed in Taiwan, Japan, Germany, China,USA and so



Light Source

625 nm visible red LED

Scan Rate

240 Scans/Sec

Sensor

Linear CMOS

Resolution

5mil/ 0.127mm (PCS=90%)

Print Contrast Ratio

30%

D.O.F

CODE-39 : Readable @ 5 mil

CODE-39 : 30~140mm @ 13 mil

CODE-39 : 30~180mm @ 20 mil

Housing Material

PC

Impact Tolerance

1.5M

Cable Type

FPC 12 PIN

Dimension

L42 x W18 x H13 mm

Weight

8.9g ± 5%

Operation Voltage


5VDC ± 5%

Working Current

<100 mA

Standby Current

<60 mA

Configuration Method

Configuration barcodes
Configuration Utility(EzU)

Interface/ Profile

USB (HID)

Symbologies

UPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5, Codabar, Matrix 2 of 5, Code 11, Code 93, Code 32, Code 128, Standard Code 39, Full ASCII Code 39, Interleaved 2 of 5, China Postal Code, MSI Plessy Code, UK Plessy Code, EAN/UCC 128, Telepen Code, IATA Code.

Ambient Light

20,000 Lux (Fluorescent Light)

Operating Temperature

0~50°C

Storage Temperature

-20~60°C

Relative Humidity

20%~85%RH (Non-condensing)

EMI Emission

Functional after 4KV contact, 8KV Air discharge

Safety Approval

FCC Class B, CE
