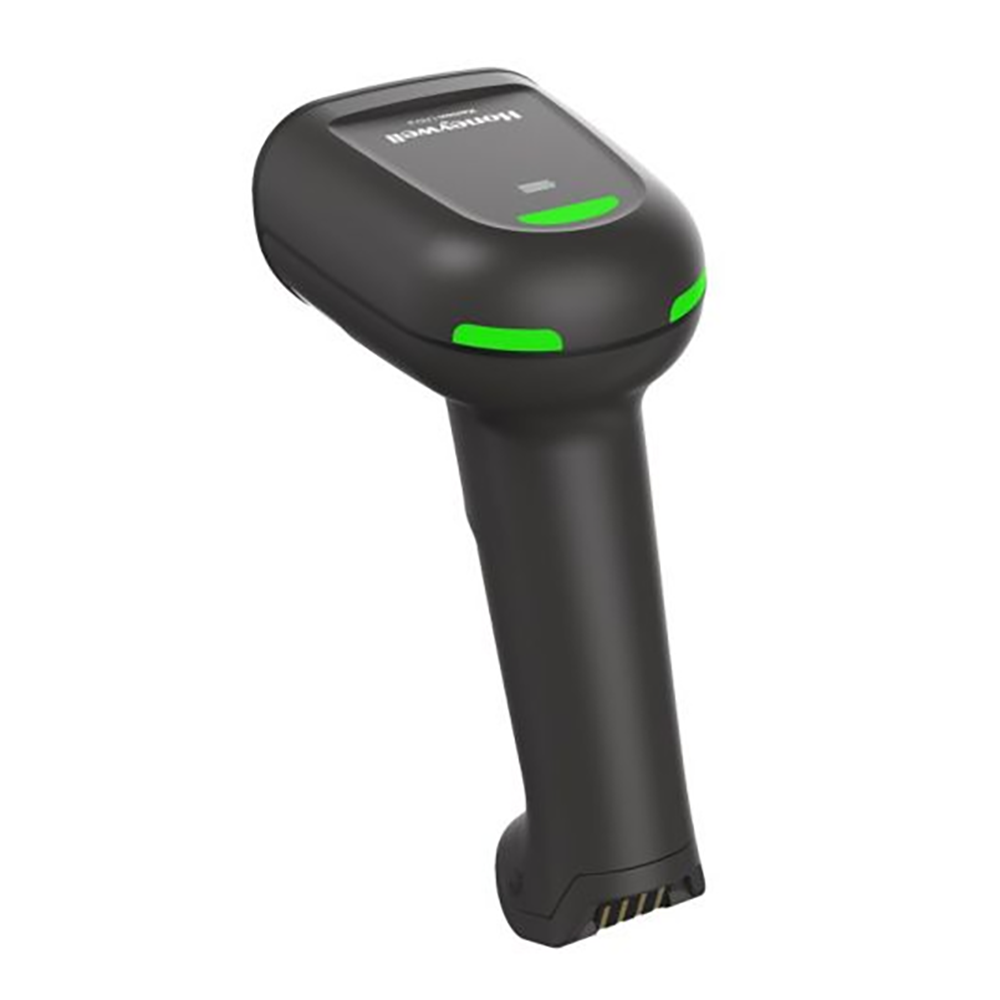

Honeywell Xenon Ultra 1962 Cordless 2D Bluetooth Barcode Scanner

The Honeywell Xenon Ultra 1962 (1962g) is a premium, next-generation cordless 2D area-imaging barcode scanner engineered for high-volume retail, distribution centers, light manufacturing, and healthcare environments. Building upon the legacy of the industry-standard Xenon series, the Xenon Ultra 1962 delivers faster scan speeds, an intuitive green-dot aimer, flexible power architectures (Lithium-ion battery or battery-free supercapacitor), and an available contactless charging system that eliminates pin corrosion.

Key Features & Advantages

• Innovative Scan Platform: Engineered with an upgraded decoding architecture and a bright green-dot LED aimer for intuitive targeting, superior motion tolerance, and instant read rates on damaged or low-contrast barcodes.
• Flexible Power Architecture: Accepts either a high-capacity Lithium-ion battery or a battery-free supercapacitor within the same scanner body, providing operational flexibility across mixed device fleets.
• Battery-Free Supercapacitor Option: Rapidly charges in minutes and holds a charge for hours, eliminating chemical battery replacements, reducing environmental impact, and lowering total cost of ownership (TCO).

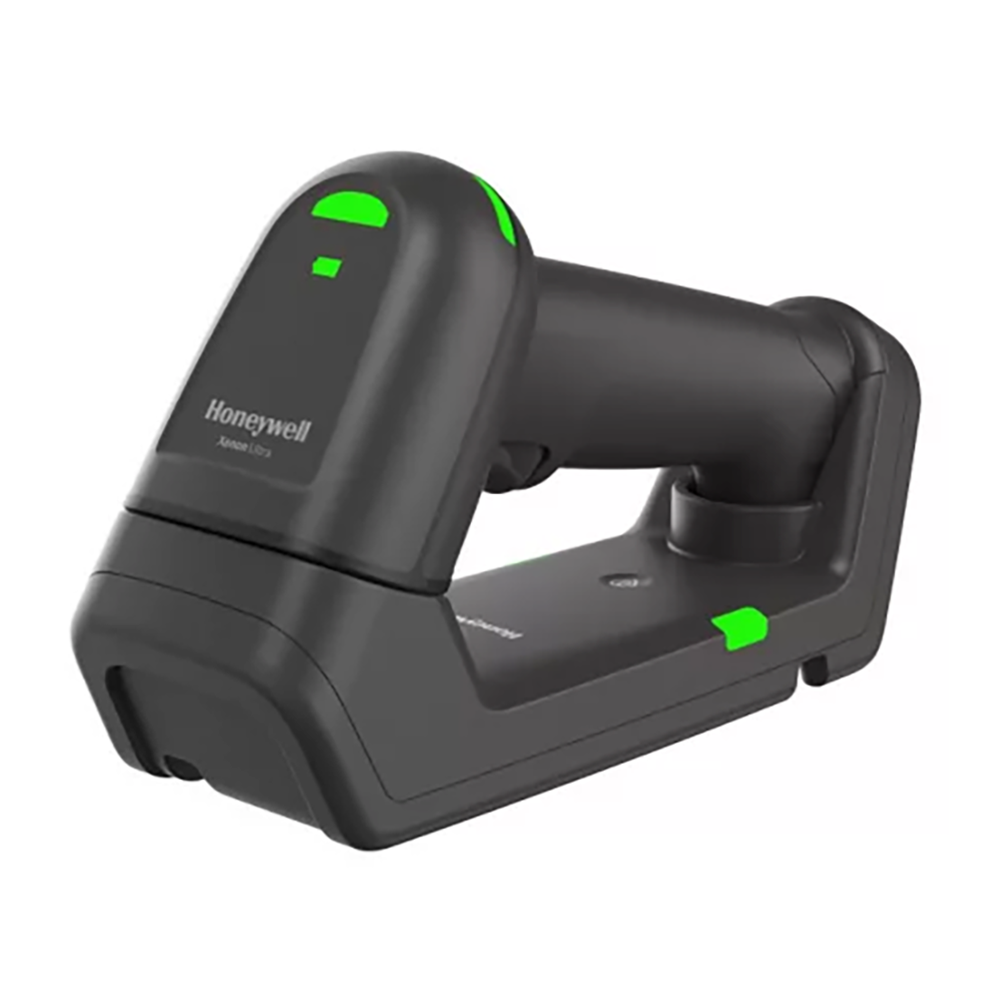

• Contactless Charging Base: Available with a premium inductive contactless charging dock that removes exposed charging pins, virtually eliminating connection failures caused by dust, grime, and liquid corrosion.
• Intelligent Recharge Alerts: Two independently configurable status alerts notify operators when power is low, preventing unexpected downtime during shifts.

Technical Specifications

• Scan Technology: Area Image (1280 x 1080 pixel array) with high-visibility green-dot aimer
• Optics Options:
  • Standard Range (SR): Optimized for general-purpose retail point-of-sale and distribution barcodes
  • High Density (HD): Optimized for high-density, tiny electronic component barcodes and jewelry tags
• Motion Tolerance: Up to 400 cm/s (157 in/s) for 13 mil UPC at optimal focal point
• Decoding Capabilities:
  • 1D Barcodes: Code 39, Code 128, UPC/EAN, GS1 DataBar, etc.
  • 2D Barcodes: QR Code, Micro QR, Data Matrix, PDF417, Aztec, Maxicode
  • Specialty Codes: Digimarc, DotCode, and digital smartphone/tablet screen barcodes
• Wireless Connectivity: Bluetooth® v4.2 / v5.0 with adaptive frequency hopping, up to 100 m (330 ft) line-of-sight communication with base station
• Battery Performance: Up to 80,000+ scans per charge (Lithium-ion) / rapid 2-minute full replenishment (Supercapacitor)
• Host System Interfaces: USB, Keyboard Wedge, RS-232, and IBM 46xx (RS485) supported via communication base

Durability & Environmental Standards

• Drop Resistance: Engineered to withstand 50 drops from 1.8 m (6 ft) to concrete and 2,000 0.5 m (1.6 ft) tumbles
• Environmental Sealing: IP52 rated against airborne dust and dripping liquids
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• ESD Protection: ±8 kV contact discharge, ±15 kV air discharge
• Applications: Retail checkout & mobile POS, luxury boutique inventory, parcel receiving & shipping, pharmacy & lab specimen identification, and light electronics assembly
