Honeywell PC300T 4-Inch Thermal Transfer Desktop Barcode Printer

The Honeywell PC300T / PC310T Series is a reliable, high-performance 4-inch thermal transfer and direct thermal desktop barcode label printer. Engineered with an innovative dual-tension ribbon system supporting both 0.5-inch and 1-inch core ribbons (up to 300 meters), it provides exceptional versatility and cost savings for retail, logistics, healthcare, and office environments.

Key Specifications

• Print Technology: Thermal Transfer and Direct Thermal
• Print Resolution: 203 dpi (8 dots/mm) / 300 dpi (12 dots/mm)
• Print Speed:
  • 203 dpi: 50 – 150 mm/s (2 – 6 ips)
  • 300 dpi: 50 – 125 mm/s (2 – 5 ips)
• Max Print Width: 108 mm (4.25 in)
• Processor & Memory: NXP i.MX6ull 800 MHz processor, 128 MB RAM, 128 MB Flash
• User Interface: Feed/Pause button, LED printer status indicators, and innovative ECO paper-saving label calibration key

Ribbon & Media Specifications

• Ribbon Capacity: Supports up to 300 m (984 ft) on 1-inch core, or 75 m (246 ft) on 0.5-inch core
• Ribbon Width: 25.4 mm (1.0 in) to 110 mm (4.33 in)
• Ribbon Formulations: Wax, Wax/Resin, and Resin
• Max Media Roll Diameter: 127 mm (5.0 in) OD, 25.4 mm (1 in) to 38 mm (1.5 in) core
• Media Types: Gap, notch, black mark, continuous, and fanfold labels (thickness 0.075 mm to 0.19 mm)
• Sensors: Gap sensor, black mark sensor, ribbon sensor, and printhead lift sensor

Connectivity & Hardware Models

• PC300T (Standard): USB 2.0 Device, USB 2.0 Host
• PC310T (Advanced): USB 2.0 Device, USB 2.0 Host, plus built-in 10/100 Mbps Ethernet

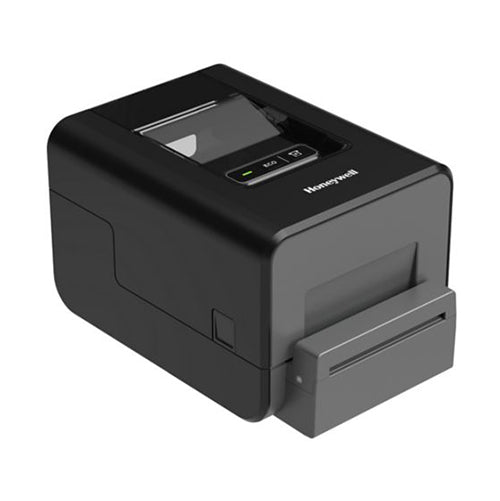

• Optional Modules: Serial RS-232, Wi-Fi 802.11 a/b/g/n/ac, Bluetooth® 5.0, label cutter, and label peeler

Printer Languages & System Compatibility

• Command Languages: ZSim2 (ZPL-II), ESim (EPL), DPL, Direct Protocol (DP), Fingerprint (FP), IPL, and XML enabled for SAP® AII and Oracle® WMS
• Drivers & Tools: InterDriver Windows® certified printer drivers, CUPS driver for Linux, Honeywell device types for SAP, and PrintSet configuration utility
• Applications: Shipping and courier logistics labels, retail shelf-edge and product tags, pharmacy and healthcare specimen labeling, and manufacturing inventory tracking
