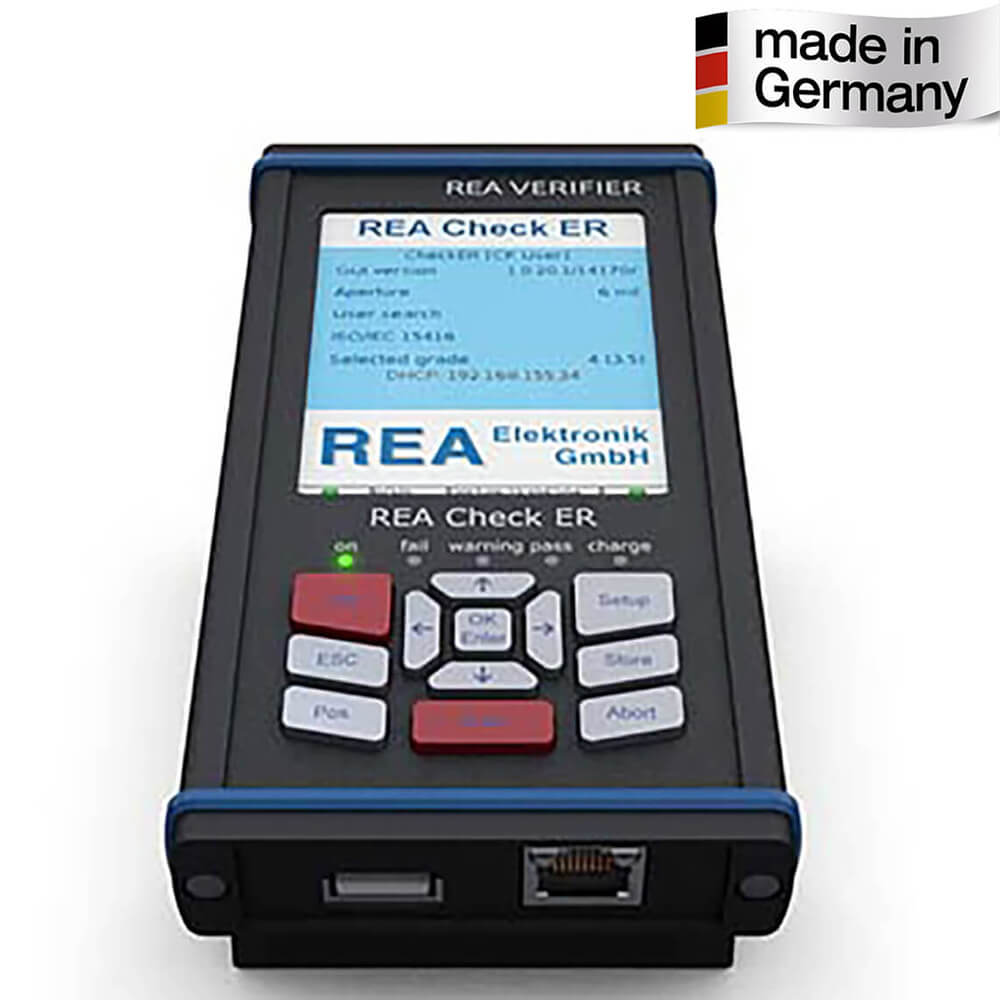

REA Check ER Portable Battery-Powered 1D Barcode Verifier
REA Check ER Portable Battery-Powered 1D Barcode Verifier
Couldn't load pickup availability
The REA Check ER is a lightweight, portable battery-powered 1D barcode verifier manufactured in Germany by REA VERIFIER. Combining laboratory-grade precision with mobile handheld convenience, the Check ER is built around a powerful 32-bit ARM9 processor running Embedded Linux. It delivers certified compliance testing according to ISO/IEC 15416, ANSI X3.182, and ISO/IEC 15426-1, making it the ideal quality audit tool for incoming goods inspection, printing press setup, and warehouse logistics.
Equipped with a solid-state optical scan engine featuring 45° red 660 nm LED illumination and a generous 75 mm measuring width, the Check ER automatically discriminates and verifies all major linear retail and logistic barcodes without requiring a connected PC. A high-contrast color graphic display and 12-key tactile keypad provide immediate overall letter/numeric grades (A–D / 4–1), full Scan Reflectance Profile (SRP) parameter breakdowns (decode, symbol contrast, edge contrast, modulation, Rmin/Rmax, defects, decodability), and colored pass/fail LED indicators. The unit stores up to 1,000 inspection reports in internal non-volatile flash memory and supports optional mobile thermal receipt printers, USB memory stick exports, and network integration via RJ45 Ethernet and Power over Ethernet (PoE).
Key Features & Quality Inspection Highlights
- Full ISO/IEC 15416 & ANSI X3.182 Grading: Certified verifier measuring all primary quality parameters with automated 2 to 10-scan profile averaging.
- Truly Cable-Free Portable Operation: Built-in rechargeable Lithium-ion battery pack provides hours of continuous cordless handheld scanning on warehouse floors.
- Vivid Color Display & 12-Button Keypad: On-screen graphical report visualization, detailed metric bar deviation charts, and plain-language parameter explanations.
- Internal 1,000-Report Memory: Stores up to 1,000 full verification records with timestamps in non-volatile flash memory for audit recall and documentation.
- Generous 75 mm Scan Width: Accommodates large shipping container barcodes (ITF-14, GS1-128) including quiet zones in a single pass.
- Multi-Aperture Versatility: Supports 5, 6, 8, and 10 mil optical apertures (0.125, 0.15, 0.20, and 0.25 mm) for diverse barcode densities.
- Versatile Connectivity: RJ45 Ethernet port (TCP/IP, DHCP, PoE) for PC software connection and USB 2.0 port for portable thermal ticket printers or USB flash drives.
- Exportable Configuration Profiles: Easily save, export, and import complete inspection criteria profiles across multiple devices or PCs.
- GS1-128 & Healthcare Compliance: Comprehensive data structure validation for GS1 General Specifications, GS1 DataBar, PZN (Pharma Central Number), and Code 32.
Technical Specifications
| Specification | Details & Parameters |
|---|---|
| Verification Standards | ISO/IEC 15416, ANSI X3.182, ISO/IEC 15426-1 (Linear Barcode Verifier Specification) |
| Architecture & OS | 32-bit ARM9 CPU, non-volatile internal flash memory, Embedded Linux OS |
| Illumination & Optics | Red LED light 660 nm, 45° standardized illumination angle |
| Measuring Width | 75 mm [2.95 in] (including required quiet margins) |
| Selectable Apertures | 5 mil (0.125 mm), 6 mil (0.15 mm), 8 mil (0.2 mm), and 10 mil (0.25 mm) |
| Metric Measuring Accuracy | Average bar deviation: ±5%; Extreme bar deviation: ±10%; Contrast accuracy: ±8% |
| Display & Controls | Large graphical color LCD display, 12 tactile silicone keys, 3 status LEDs (Pass/Warning/Fail) |
| Memory Capacity | Internal flash storage for up to 1,000 comprehensive verification reports |
| Interfaces | RJ45 Ethernet (TCP/IP, DHCP, PoE); USB 2.0 port for portable report printer or USB memory stick |
| Power Supply | Internal rechargeable Li-ion battery pack; Power over Ethernet (PoE 100–240V 50/60 Hz power injector included) |
| Dimensions (L × W × H) | 222 mm × 85 mm × 95 mm [8.7 in × 3.3 in × 3.7 in] |
| Weight | 660 g [23.3 oz] (lightweight handheld ergonomics) |
| Software & Remote Control | REA TransWin32 compatible (Windows 7 / 8 / 10 / 11 64-bit), driver-free PC operation |
| Regulatory Certifications | CE Certified, RoHS compliant, Made in Germany |
Supported Symbologies & Industry Standards
- 1D Linear Barcodes: EAN-13, UPC-A, UPC-E (with/without add-on), EAN-8, Interleaved 2 of 5 (ITF), ITF-14, Code 39 (with/without check digit), Code 128, GS1-128 (with Application Identifier syntax validation), Freight / Logistics code.
- Pharmaceutical & Healthcare Codes: PZN (Pharma Zentral Nummer), Code 32 (Italian Pharmacy).
- GS1 DataBar Symbologies: GS1 DataBar Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked.
