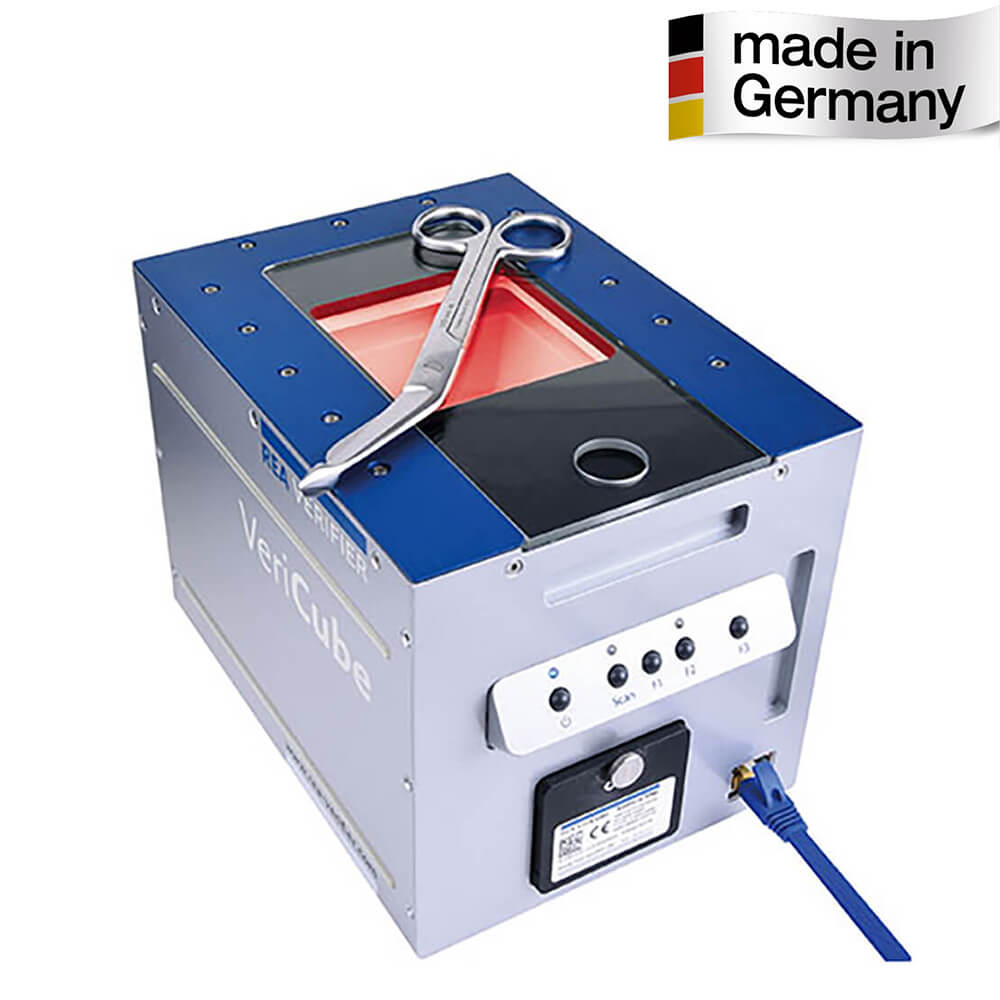

REA VeriCube DPM

REA VeriCube DPM

Normaler Preis $7,800.00 USD
Normaler Preis Verkaufspreis $7,800.00 USD
Sale Ausverkauft
inkl. MwSt. Versand wird beim Checkout berechnet

Product details VeriCube DPM

  • Universal stationary 1D barcode and 2D matrix code verification system

  • DOME illumination

  • Matte white tube insert for extremely diffuse illumination

  • Can be used in three positions: sideways, upright upwards, upright downwards

  • Exchangeable, scratch resistant real glass pane

  • Selectable illumination options (red light, white light)

Feat DPM

  • DOME Illumination

  • Contact-free measurements by a CMOS camera

  • Matte white tube insert in the measuring room for extremely diffuse illumination

  • Easy exchangeable camera modules to adapt to different code sizes and measuring distances

  • Different focus positions (0, +15mm, +45mm) above the glass pane to measure parts where the code cannot be placed on the pane with distance 0

  • Selectable diffuse illumination (red or white light)

  • Designed to operate in 3 positions to meet different measuring requirements: sidewise, in upright position and upside down

  • Verification according to ISO/IEC 15415 for printed matrix codes

  • Verification according to ISO/IEC TR 29158 (formerly AIM DPM guideline 2006) for direct part marking matrix codes

  • Verification in compliance with GS1 specifications

  • Verification of GS1 data structures, ISO/IEC 15459-x series of standards and ISO/IEC 15418 / ANSI MH10.8.2 data structure analysis

  • Verification of optional parameters for optimizing the print process

  • Multilingual user interface and reports

  • For ease of use, settings can be stored in customized profiles for fast selection

  • Specific code selection to meet the pharmaceutical industry demands

  • Power supply via network cable (Power over Ethernet)

  • Easy removable and exchangeable glass cover plate

  • Network-compatible PC evaluation software TransWin32 for Windows (multi user capable)

  • Option Audit Trail for 21 CFR part 11 and CGMP requirements optionally available

Specs DPM

  • Measuring accuracy compliant to ISO/IEC 15426-2 and ISO/IEC 15426-1

  • Red LED light 660 nm or white LED light, 4.000 °K

  • Exchangeable camera module, resolution 2592 x 1944 pixel

  • Camera focus and aperture pre-adjusted by factory

  • Flip key panel to accomodate to preferred measuring position

  • RJ45 Ethernet port for TCP/IP communication and PoE Power supply

  • Key panel with on/off, Scan and customizable function keys

  • Size: 200 x 150 x 150 mm (w/l/h), with key panel 210 mm width

  • Weight: 2.600 g

  • Windows 10 or later, 64bit support. The Audit Trail option requires a 64-bit Windows version

  • ISO/IEC 15423 : Please note that this performance standard is valid for barcode and matrix codes scanners only. It does not apply to optical measuring instruments like the REA Verifier product range. For Verifiers ISO/IEC 15426-x are the appicable performance standards.

  • ISO/IEC 15419: Please note that this performance standard is valid for barcode and matrix codes labeling and code generation software as well as for printers printing QR-Codes, Data Matrix Codes and Barcodes.


2D Matrix Codes:

  • ISO/IEC 16022 Data Matrix

  • ISO/IEC 18004 QR-Code

  • ISO/IEC 24778 Aztec Code

  • ISO/IEC 20830 Han Xin Code

  • AIM ISS DotCode

  • ISO/IEC 15438 PDF417

  • ISO/IEC 24728 MicroPDF417

1D Barcodes:

  • ISO/IEC 24723 Composite Code

  • ISO/IEC 15420 EAN/UPC (EAN-13, EAN-A, UPC-A, UPC-E und Add-On)

  • ISO/IEC 15417 Code 128

  • ISO/IEC 16388 Code 39 (mit PZN und Code 32)

  • ISO/IEC 16390 Interleaved 2 of 5 einschließlich ITF-14

  • ISO/IEC 24724 GS1 DataBar

Optional Codes:

  • 2/5 3 Bars, 2/5 5 Bars, 2/5 IATA, 2/5 Baggage, 2/5 DHL Express (Frachtpost-Code), Code39 Full ASCII, Code93, MSI, Plessey, Codabar Monarch (18), LAETUS Pharmacode, LAETUS Mini Pharma Code, Russian Crypto Code, China Drug Supervision Code, Japan CVS payment Code, UPU-S10 Postal Codes, DPD Parcel Service

Data structures and code properties:

  • GS1 data structures: GS1 DataMatrix, GS1 QR-Code, GS1-128, GS1 Databar, GS1 Composite Code), Crypto Code (GS1 General Specifications)

  • ISO data structures: ISO/IEC 15418 / ANSI MH10.8.2, ISO/IEC 15459 (part 1 to 8), ISO/IEC 15434 used by Issuing agencies and associations: AIAG, Odette, VDA, EDIFICE, HIBC, DOD, UPU, JEISA, JEITA, IFA …)

  • ISO 28219, ISO 22742, ISO 15394

  • EFPIA and PPN support for pharmaceutical industry (delegated Act EU 2016/161 and UDI/MDR 2017/745, 2017/746, US DSCSA, Turkey and more, US GUDID alignment (UDI)

  • DOD MilStd 130 IUID support, AIT (German Armed Forces)

  • Check digit control settings

  • Size control settings

  • Customizable date verification

  • Optional database (item number verification)

  • IKEA Data Matrix Code and IKEA interleaved 2 of 5 Code


  • ISO/IEC 15416 for barcodes, ISO/IEC 15415 for 2D Codes

  • ISO/IEC 29158 and SAE AS 9132 for DPM

  • GB/T 14258 (China barcode), ANSI X3.182

REA VeriCube DPM in useVerifcation of surgical instruments -1Verifcation of surgical instruments -2
