REA

REA ScanCheck 3

REA ScanCheck 3

Regular price $4,150.00 USD
Regular price Sale price $4,150.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

REA ScanCheck 3

Barcode Verification Systems

The REA ScanCheck 3 is an universal, battery-operated, high-performance barcode verification device which operates in accordance with current standards. The verifications document compliance with quality goals in production and monitoring of barcodes on data storage devices and products of all kinds.

The measurement principle is based on a laser scanner optimized for verifications. This makes contact-free measurement, largely independent of handling influences, possible. For mobile use on site, the device operates self-sufficiently, independent of the power network with standard, rechargeable batteries. The operating system and application software support multiple languages.

For quick creation and evaluation of verifications and their comprehensive display, the unit is equipped with a powerful 32-bit processor, a brilliant color graphic display and tone generator. Measurement data can be saved internally in flash memory and/or immediately printed out via the USB interface with the mobile report printer. Data can also be transferred via network communication to a standard PC and processed there further with the - optionally available - REA TransWin 32 evaluation software.

Product Details

  • Contactless inspection with a specifically optimized laser which resembles a scanner register

  • Simple positioning with the visible laser beam

  • Keypad with 22 input keys for configuring and entering comments on-site

  • Suitable for measuring large and small barcodes

  • Memory for up to 1000 readings

  • USB connection for a portable printer

  • Reliable PC communication per network possible

  • DHCP capable

Features

  • Verifier in conformity with ISO/IEC 15426-1

  • Contact-free linear scanning with laser technology

  • Code verification / evaluation according to the verification specifications ISO/IEC 15416 or ANSI X3.182

  • Alternatively with optional parameters according to the respective symbology standards (configurable)

  • Specification of desired class or complete verification profile with target/actual comparison

  • Multiple measurement with averaging from 2 to 10 single measurements possible

  • Auto discrimination of the most important bar code symbologies

  • Automatic code size and check digits monitoring

  • Verification and visualization of quiet zones with an extended area

  • Ratio monitoring for two bar width codes (e.g. Code 39, 2/5i)

  • Verification of GS1 General Specification requirements

  • Verification / evaluation of GS1-128 data structures

  • Multilingual reports and user interface

Technical Data

  • Barcode verification unit with measurement accuracy in conformity with ISO/IEC 15426-1

  • ARM9, 32bit Microprocessor, 180Mhz, 32 MB RAM, 32MB Flash ROM, 512MB-MMC-Flash memory

  • ElinOS Embedded Linux operating system

  • Red light illumination with 670 nm semiconductor laser, laser protection class II, <1 mW, from 45°

  • Max. measurement width 140 mm, or 175 mm with 20 mil adapter, each incl. bright field zones

  • Aperture: 6, 8 mil 10 mil, with adapter 20 mil (equals 0.15; 0.2; 0.25, 0.5 mm)

  • Measuring accuracy: +/-5% for average value; +/-10 % for extreme values; +/-8 % for contrast values

  • Connections:

    • RJ45 Ethernet port for power supply and TCP/IP data transfer

    • USB 2.0 port for printer connection and for software update

  • Color LCD display, 22 short-stroke keys for operation and evaluation on site

  • Power supply: internal via 4 NiMH battery cells and/or externally via Power-Over-Ethernet power supply, primary 110-240 V~ with power connection cable for EU, US, UK, 2 CAT5 network patch cables (supplied)

  • Dimensions (L x W x H ): 222 x 85 x 92 mm

  • Weight: 1,115 g

  • User maintenance: Instrument is factory calibrated. Recalibration, required monthly or in the case of location or lighting change, with supplied calibration card

  • Verification tool monitoring recommended monthly with supplied test code

  • Operation after activation with REA TransWin 32 evaluation software program for PC with MS® Windows 7 and advanced operating systems and .NET Framework version 2.0 or later possible with the following functionalities: Data upload, display, save, parameterization, remote control, print-out

Symbologies

  • EAN-13

  • UPC-A

  • UPC-E with/without ADD-ON

  • EAN-8, 2/5 Interleaved with/without check digit

  • ITF-14

  • Freight code

  • Code 39 with/without check digit

  • PZN-Code

  • Code 32

  • Code 128

  • GS1-128 with/without content verification

  • GS1-Databar

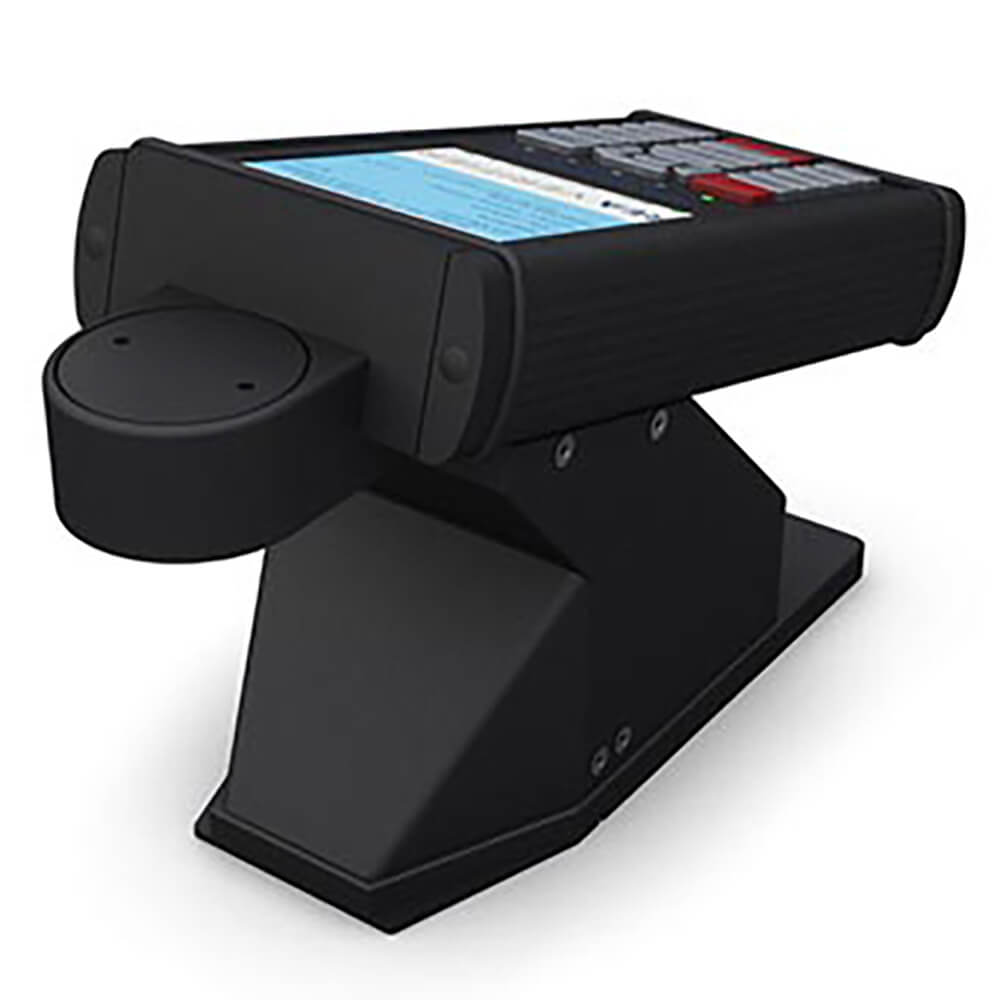

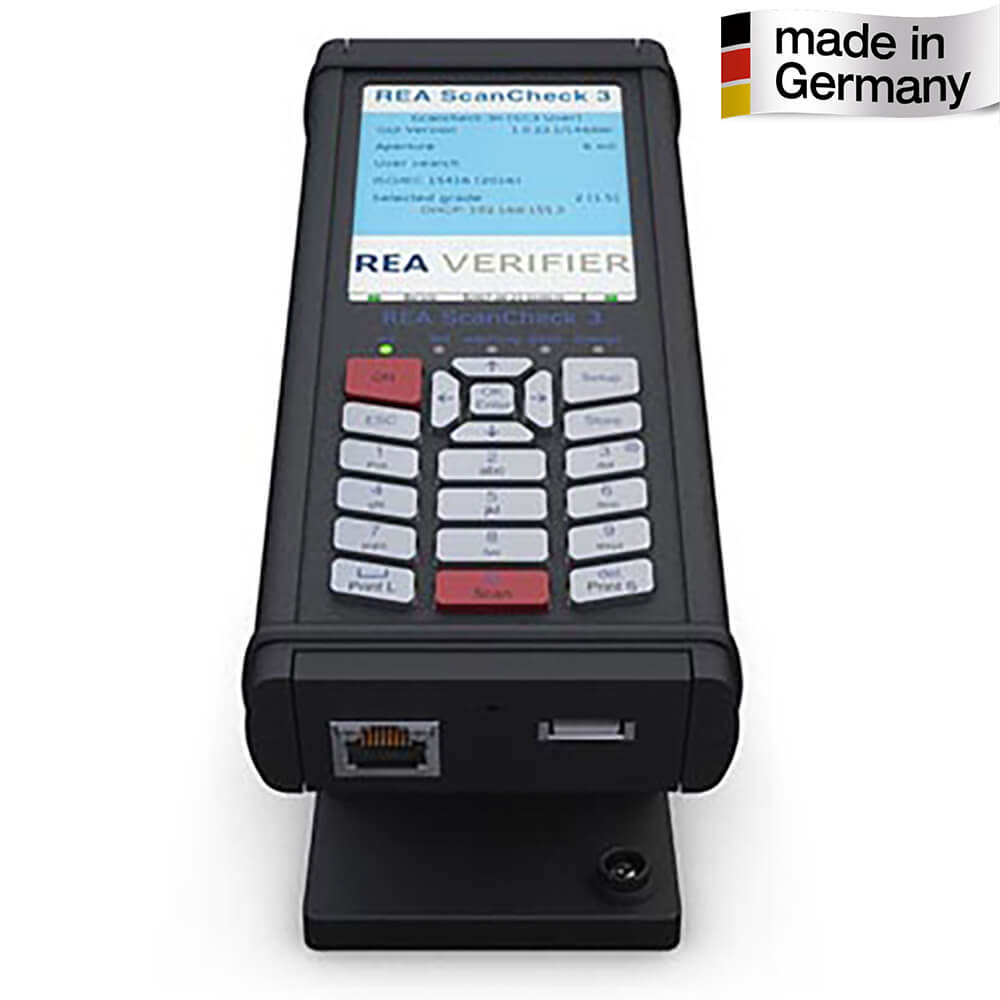

REA ScanCheck 3 in useREA ScanCheck 3REA ScanCheck 3 report printerExtension plate and 20 mil adapter
