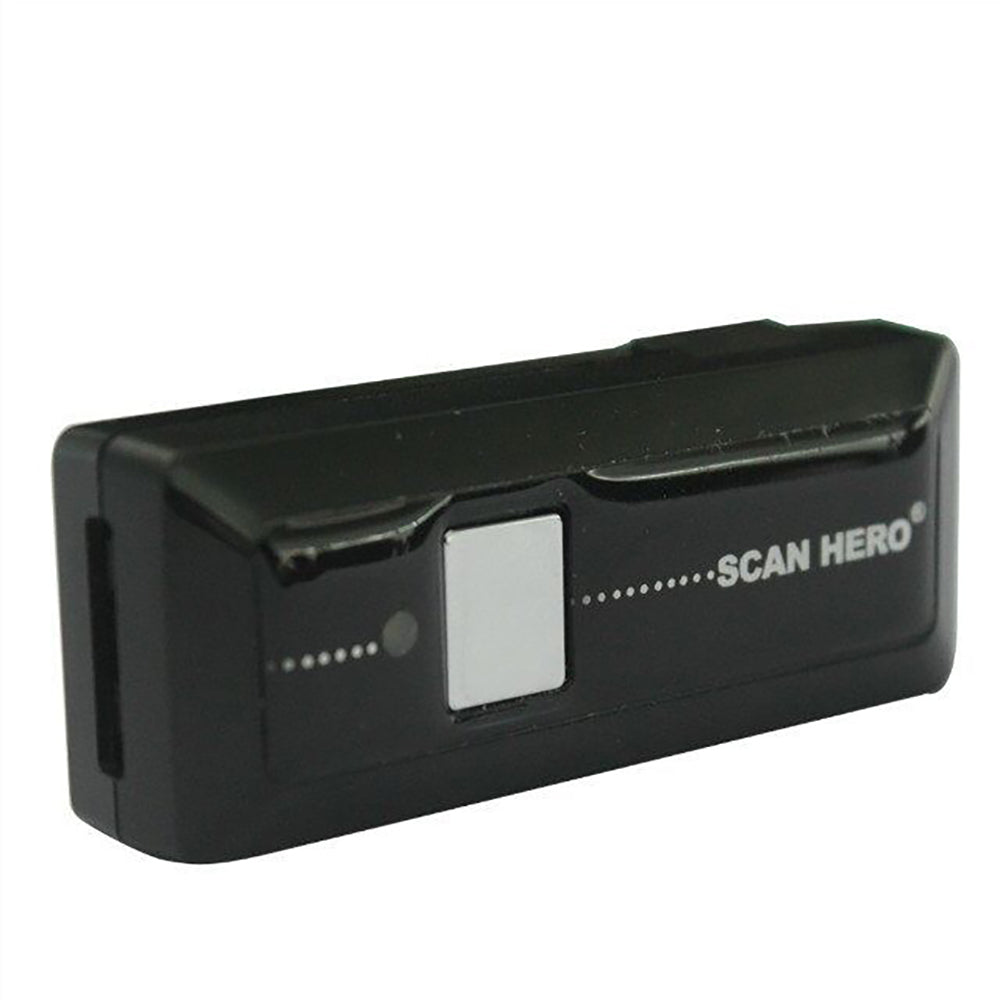

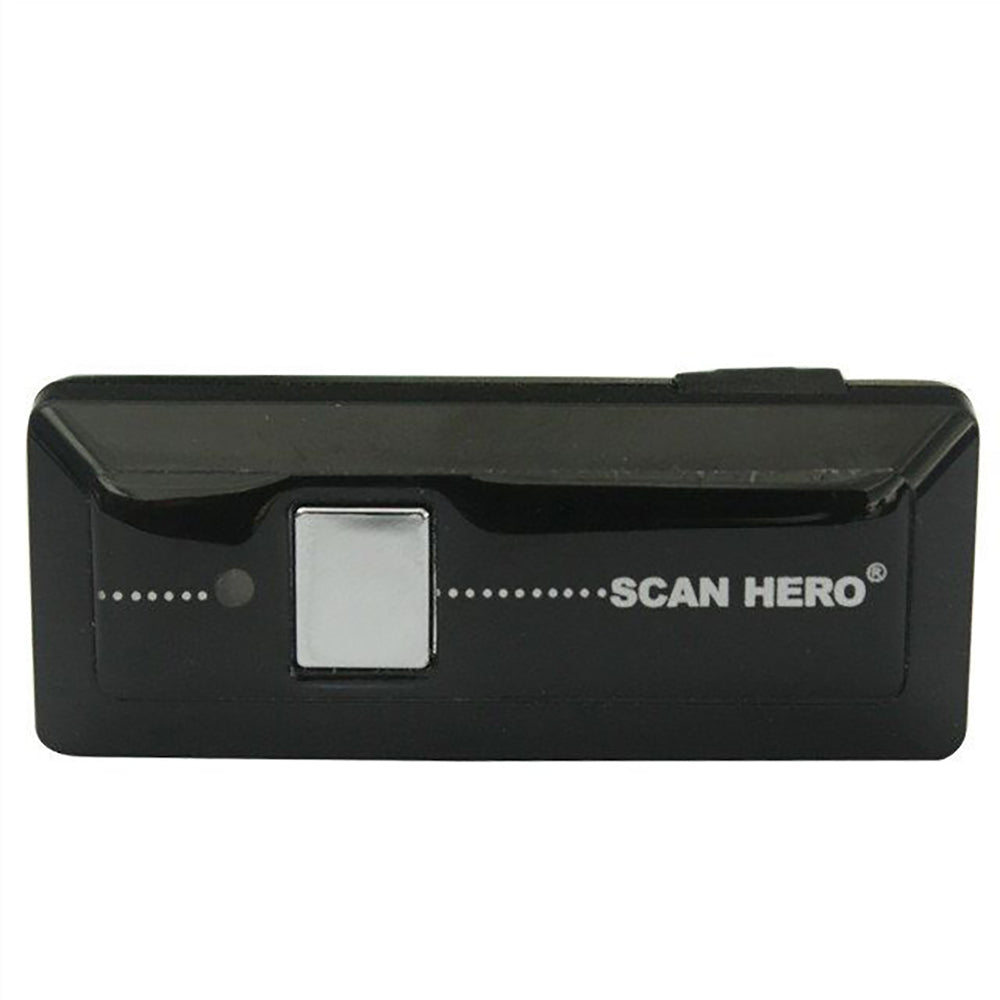

• Scan Hero SL-1091BT smallest barcode scanner front view
  • Scan Hero SL-1091BT smallest barcode scanner left view

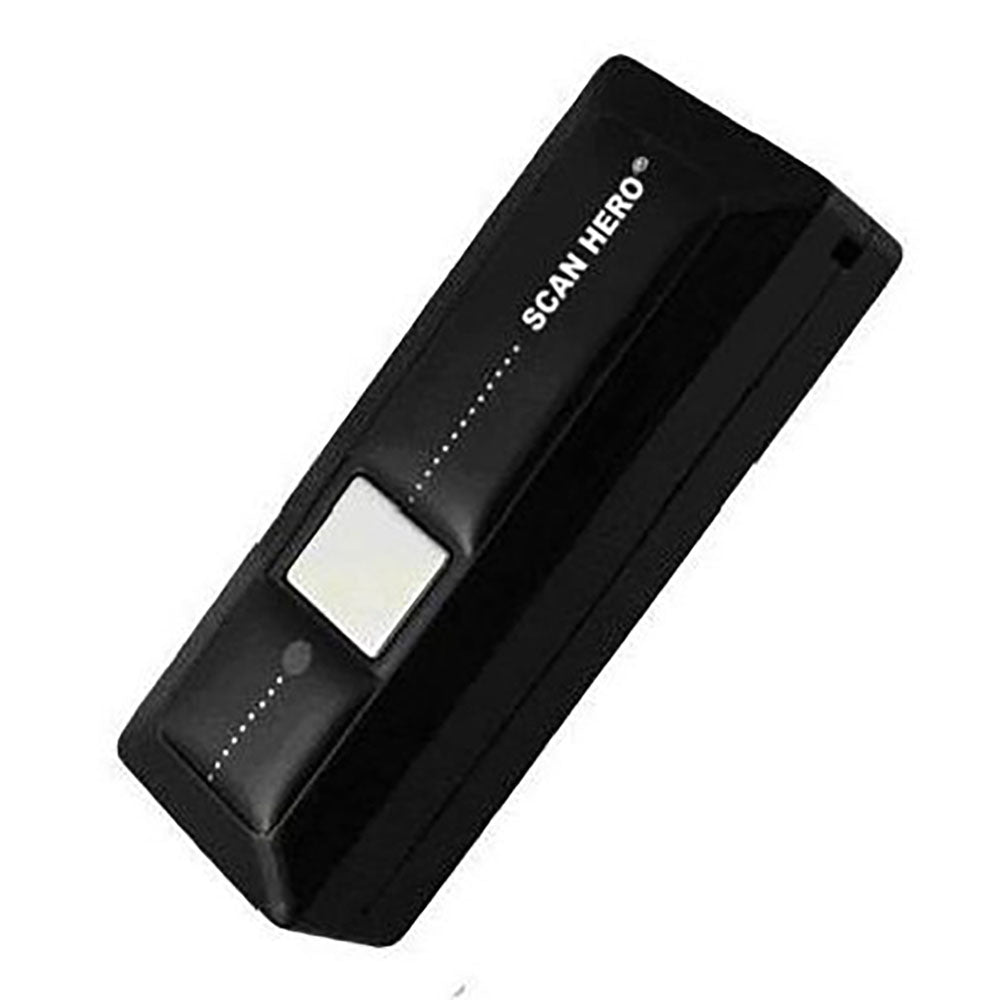

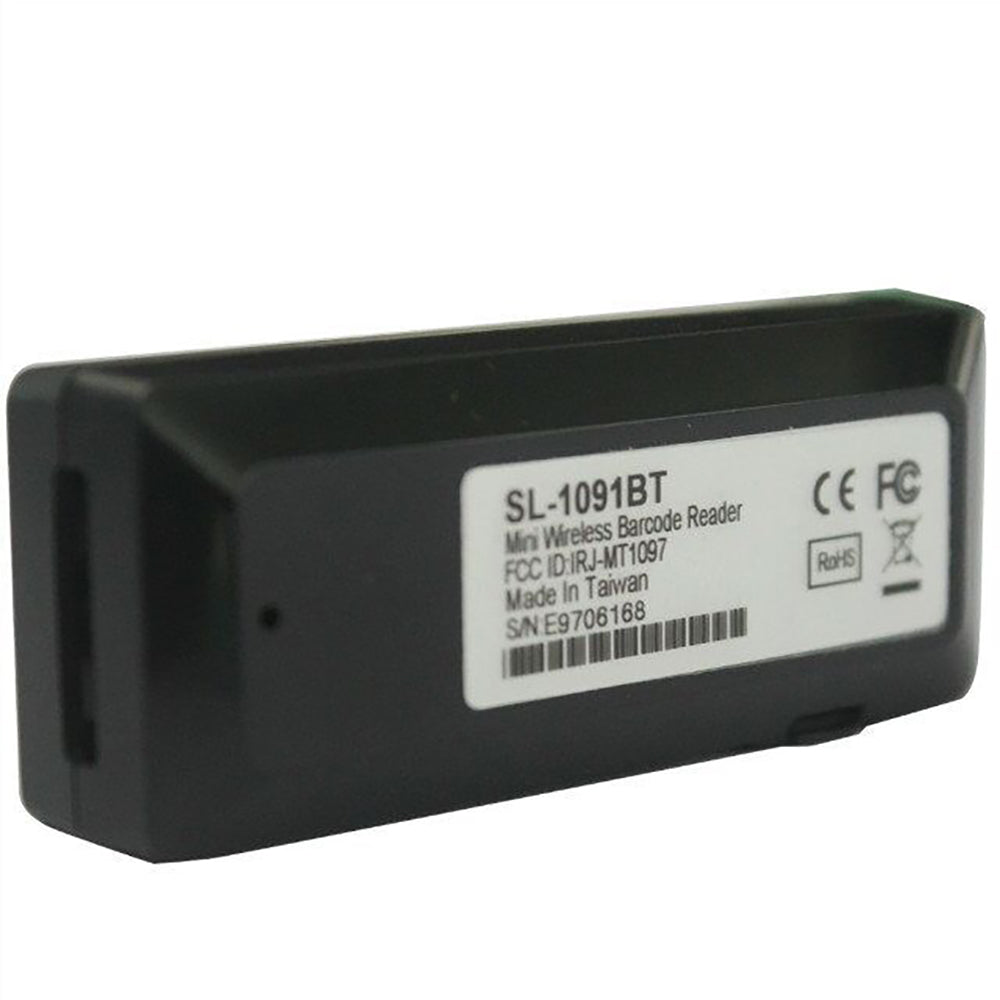

  • Scan Hero SL-1091BT smallest barcode scanner back view

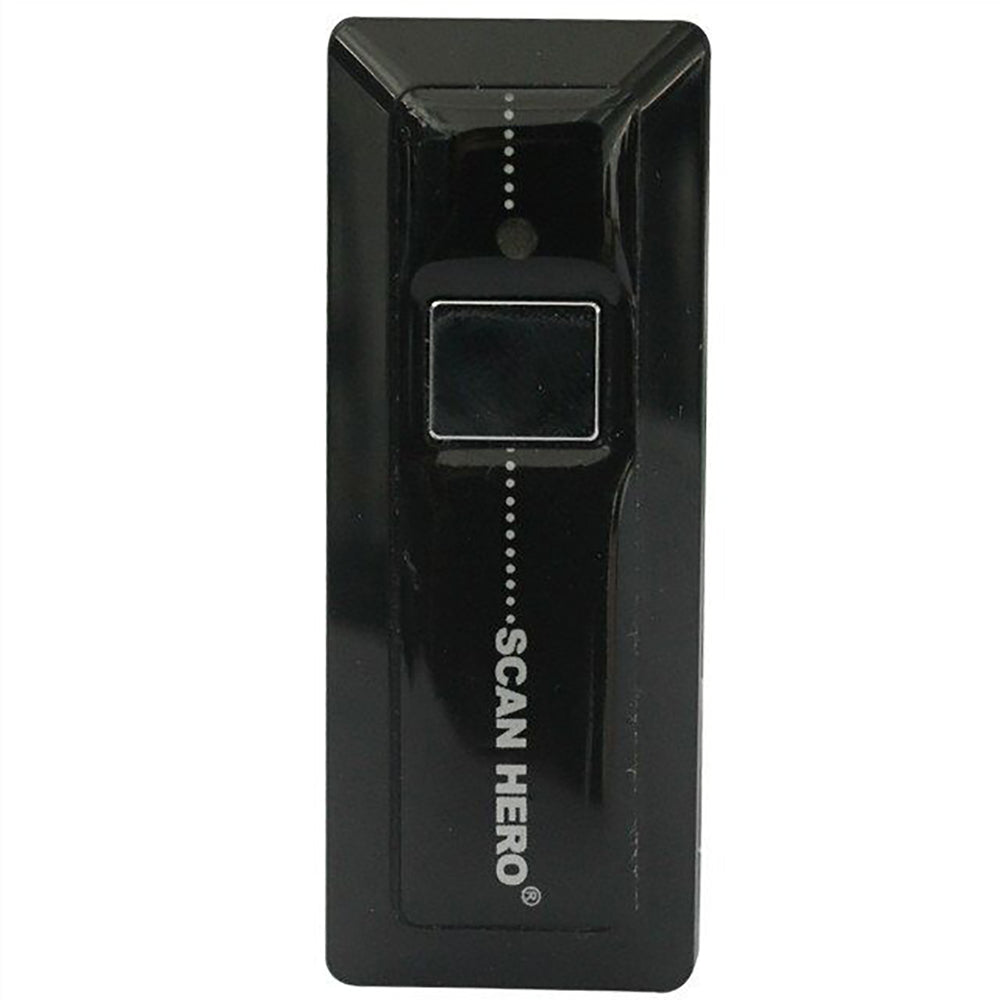

  • Scan Hero SL-1091BT smallest barcode scanner front view
1 5

Scan Hero（Support OEM）

Scan Hero SL-1091BT smallest barcode scanner

Scan Hero SL-1091BT smallest barcode scanner

$0.00 USD
$0.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

SL-1091BT is the smallest barcode scanner in the market. In fact it's tiny at L65xW24xH18mm and only 24.6g in weight, bringing industrial-class barcode scanning into a pocket-sized form factor.


Wireless interface, gives you the flexibility of moving around your office or work area without having to worry about if the barcodes are too far from your work station. Because most laptops, smart phones and iPad are equipped with wireless adaptors.


SL-1091BT delivers scan rate of 240 scan per second, allowing users to capture barcodes from near contact to as far as 144mm away. It delivered fast and accurate scanning performance.



Features

• The World's Smallest Barcode Scanner
• Wireless Communication interface
• For portable device, such as tablet PC or smart phone
• Support all major 1D barcode
• Patent has been filed in Taiwan,USA, China and so on.

*note: patent numbers:

China：

ZL 2010 2 0287072.6

Taiwan：

M395218

USA：

13/193,202


*SL-1091BT Compatible OS & Device:

iPad, iPhone

Android 2.0 above version

Windows OS, Windows Mobile





Specifications



Light Source

625 nm visible red LED

Scan Rate

240 Scans/Sec

Sensor

Linear CMOS

Resolution

5mil/ 0.127mm (PCS=90%)

Print Contrast Ratio

30%

D.O.F

CODE-39 : Readable @ 5 mil

CODE-39 : 30~140mm @ 13 mil

CODE-39 : 30~180mm @ 20 mil

Housing Material

PC

Impact Tolerance

1.5M

Cable Type

Mini USB

Dimension

L65 x W24 x H18mm

Weight

24.6g ± 5%

Operation Voltage

3.7VDC ± 5%

Working Current

<150 mA

Standby Current

<60 mA

Battery Type

Li-ion Battery


Battery Duration



5000 reads/charge

Wireless Class

Class 2 (10M line-of-sight coverage

Configuration Method

Configuration barcodes
Configuration Utility(EzU)

Interface/ Profile

SPP(HID)

Symbologies

UPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5, Codabar, Matrix 2 of 5, Code 11, Code 93, Code 32, Code 128, Standard Code 39, Full ASCII Code 39, Interleaved 2 of 5, China Postal Code, MSI Plessy Code, UK Plessy Code, EAN/UCC 128, Telepen Code, IATA Code.

Ambient Light

20,000 Lux (Fluorescent Light)

Operating Temperature

0~50°C

Storage Temperature

-20~60°C

Relative Humidity

20%~85%RH (Non-condensing)

EMI Emission

Functional after 4KV contact, 8KV Air discharge

Safety Approval

FCC Class B, CE
