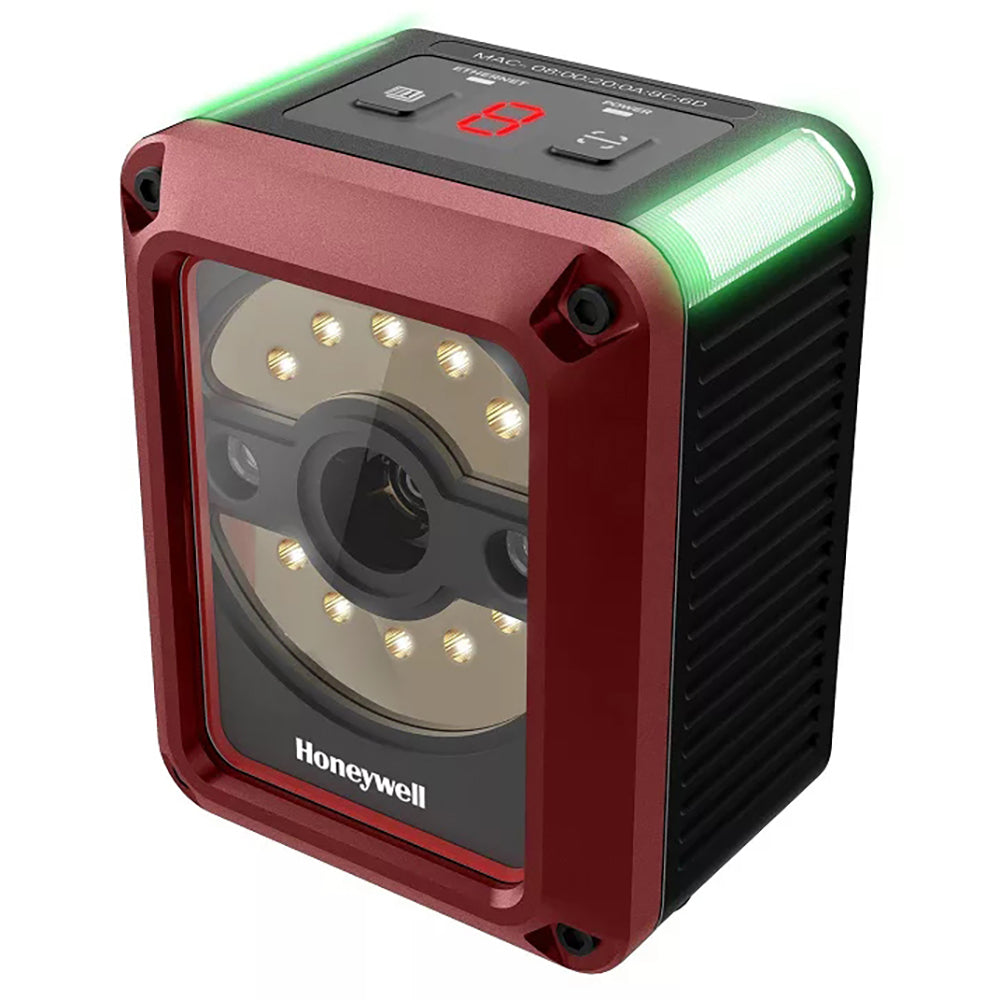

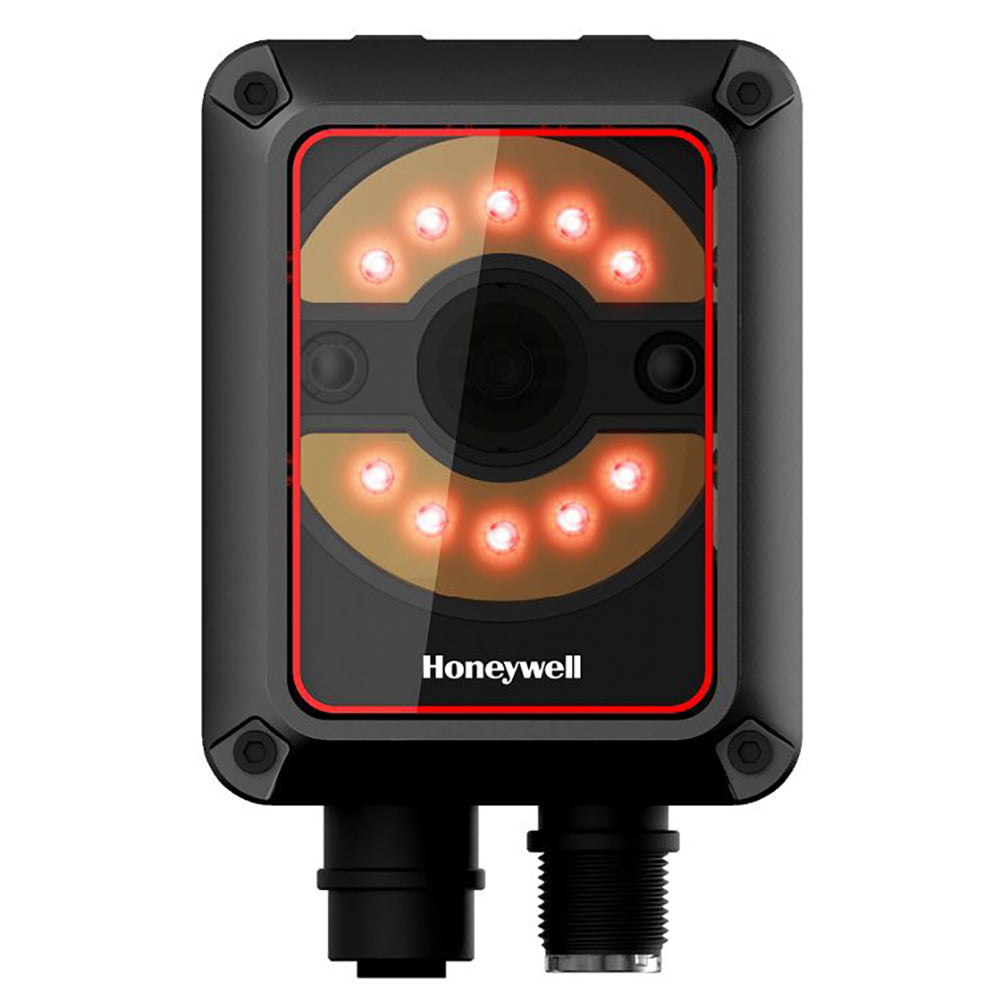

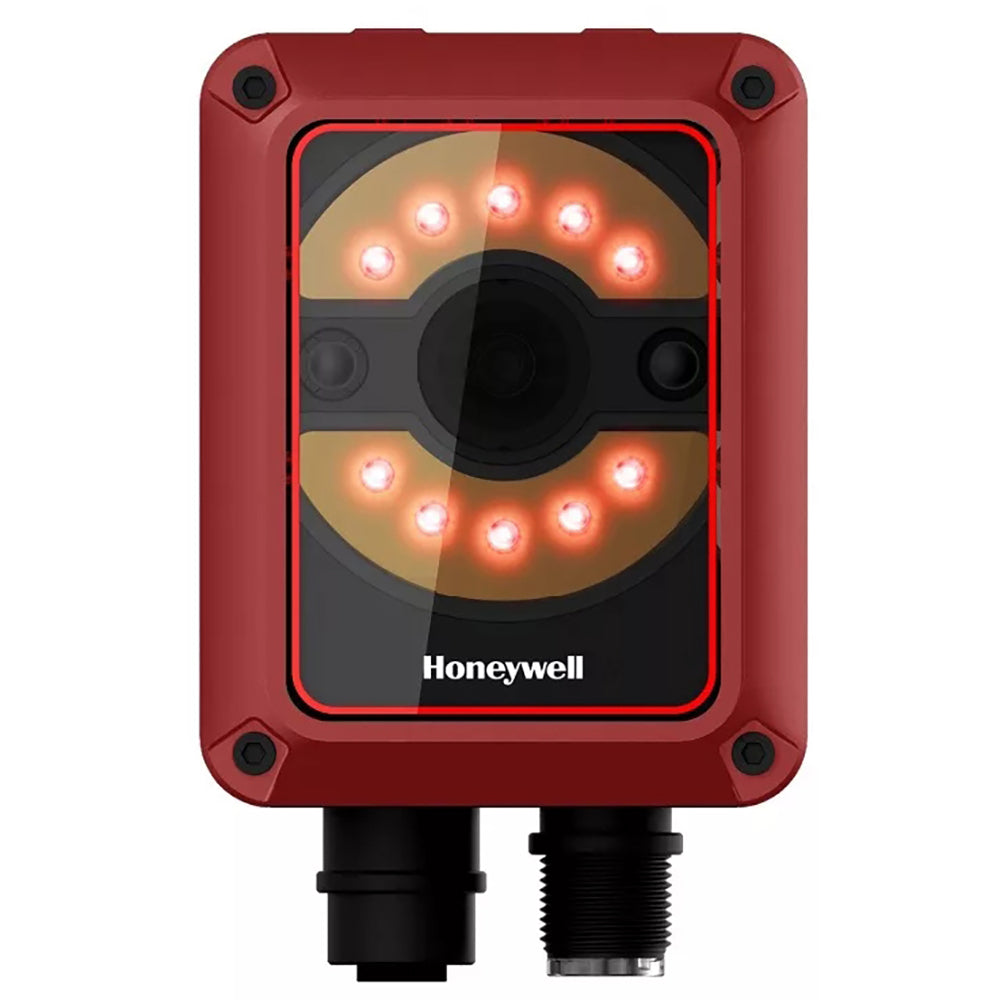

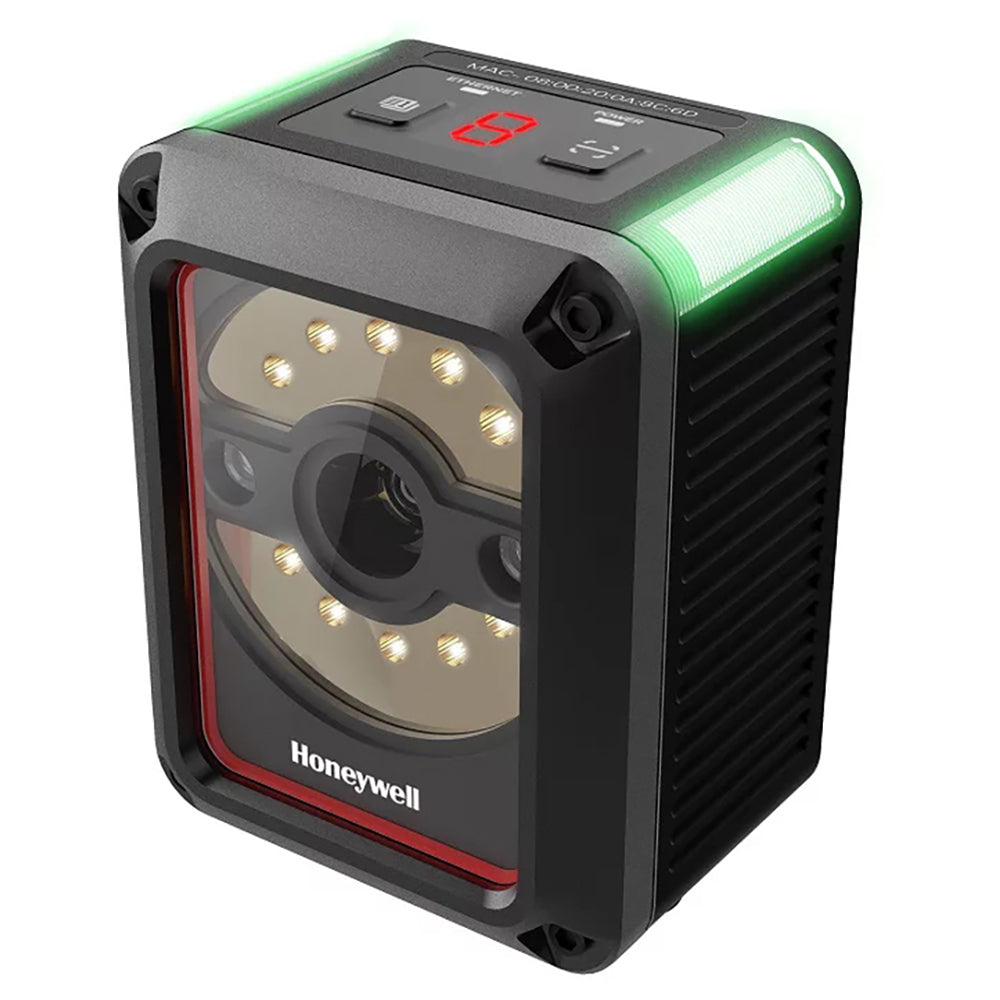

Honeywell HF810 / HF811 Fixed Mount Scanners

HF810 & HF811 Fixed Mount Scanners

Built with flexibility in mind, the HF810 and HF811 are designed to perform in a wide variety of environments and enable seamless integration with package sorting and light manufacturing processes.

About the HF810 & HF811

With Honeywell’s enhanced technology in encoding and decoding, HF810 and HF811 Fixed-mount 2D Industrial Scanners offer powerful performance, including DPM capabilities, in a compact form factor that can be networked to build a complete manufacturing or warehouse management solution for end users.

FEATURES AND BENEFITS

• Enhanced performance – Dedicated DPM algorithm for rapid scanning in manufacturing workflows
• Flexible configuration – Network-ready with I/O functionality for accessories such as external triggers and auxiliary lighting
• Plug and Play– DataMax Plus configuration tool enables rapid setup. Autotune function optimizes scanning parameters with the press of a button

TECHNICAL SPECIFICATIONS

MECHANICAL

Dimensions (H x W x D): 70 mm x 55 mm x 45 mm

Weight: 180g

Lens: Liquid Lens

ELECTRICAL Input Voltage: 240V

Output Current: 24VDC / 5A

Communication: RS232, RS485, TCP/IP, Field Bus Protocol (Profinet, EthernetIP,

Modbus TCP)

ENVIRONMENTAL

Operating Temperature: 0°C to 50°C

Storage Temperature: -20°C to 70°C

Humidity: 5% to 95% relative humidity, non-condensing

IP Rating: IP65

SCAN PERFORMANCE

Scan Pattern: Area image

HF811 Resolution: 2 MP

HF810 Resulution: 0.5 MP

Scan Angle:

Horizontal: 20-39° (Narrow vs. Wide FOV)

Vertical: 11-22° (Narrow vs. Wide FOV)

Decode Capability: Reads standard 1D, PDF, 2D (QR, Datamatrix, Maxicode, Aztec)

DPM

Warranty: 3-year factory warranty
